Pacifica V6-3.8L VIN L (2005)

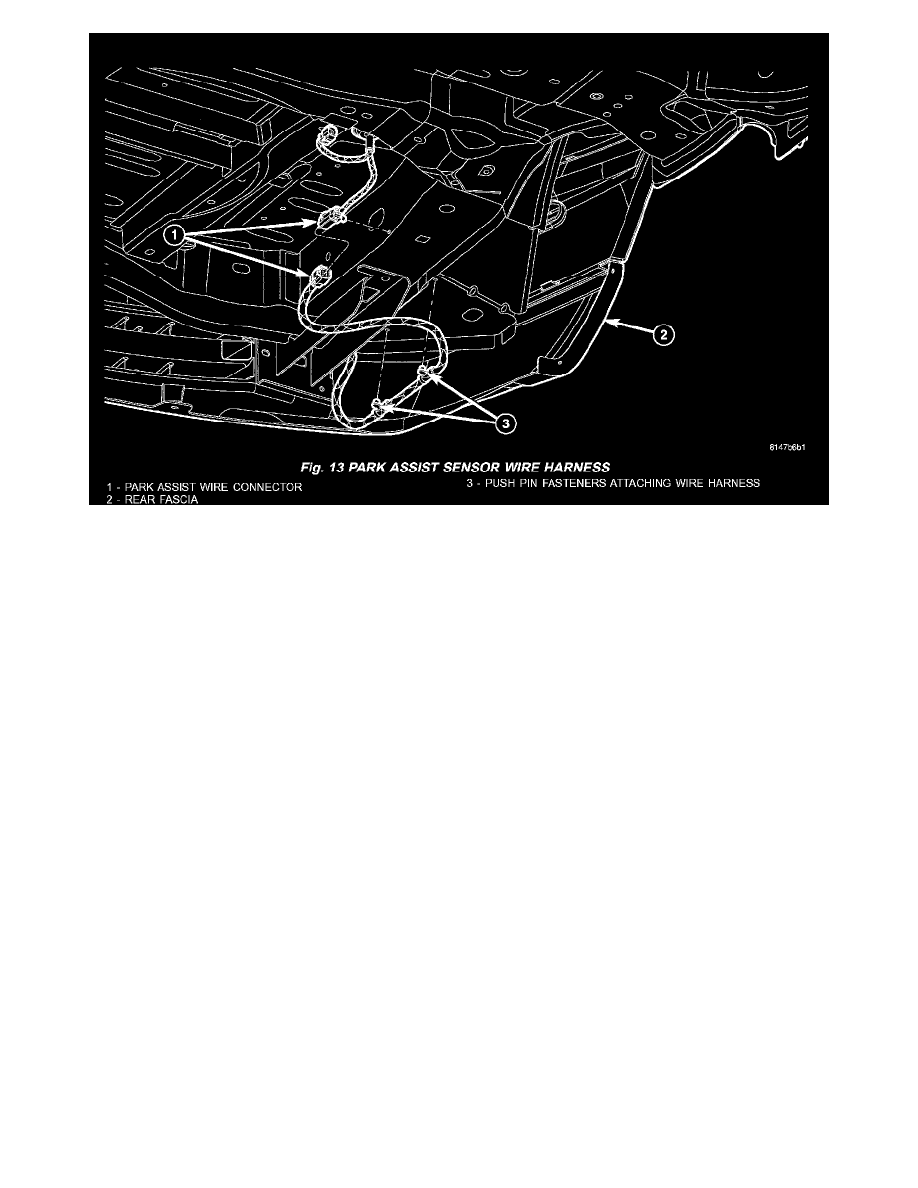

Fig. 13
4. Disconnect the park assist wire connector under the vehicle and the push pin fasteners attaching wire harness under the vehicle (Fig. 13)
5. Remove the four push pin fasteners attaching rear fascia to reinforcement bumper.
6. Remove two screws (each side) attaching fascia to rear fascia bracket in the wheelhouse.
7. Remove the screw on each side attaching the upper fascia in the tail lamp bucket area.
8. Remove rear fascia from vehicle by lifting sides of fascia up and outboard to release from rear fascia brackets.
9. Place fascia on a clean surface.
