Pacifica V6-3.8L VIN L (2005)
10.

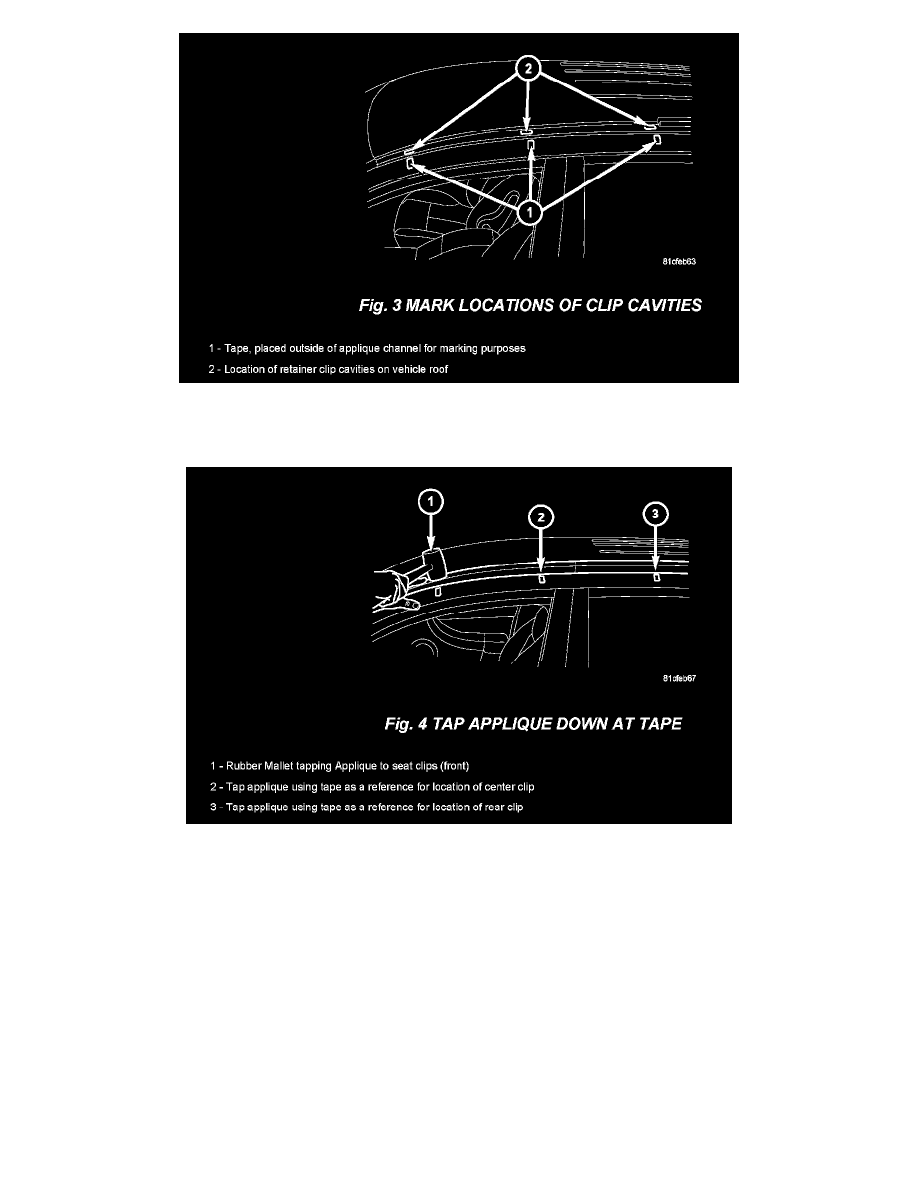

Mark the position of the retaining clips on roof line with small pieces of masking or electrical tape, (out of the applique channel). (Fig 3)
11.
Remove the backing from the adhesive on the new applique molding and set in position.
12.
Gently tap the applique with a rubber mallet at the points marked with tape to seat in clips. Use only enough force to engage the applique into the
retainers. (Fig 4)
13.
Position the overlapping portion of the rear rail trim over the front or the rear molding.
14.
Install the (3) 1-25 Torx screws. Tighten to 55 In. Lbs (6 N-m) Torque.
15.
Press the applique with a roller or hand pressure to outside edge to ensure complete bond of adhesive.
16.
Return luggage rack cross rails to their original position, (if equipped).
POLICY:
Reimbursable within the provisions of the warranty.
