Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-2132005.png)
PARTS REQUIRED:
REPAIR PROCEDURE:
1. Raise vehicle on hoist. Refer to the detailed procedures available in DealerCONNECT > TechCONNECT under: Service Info > Lubrication and
Maintenance > Hoisting.

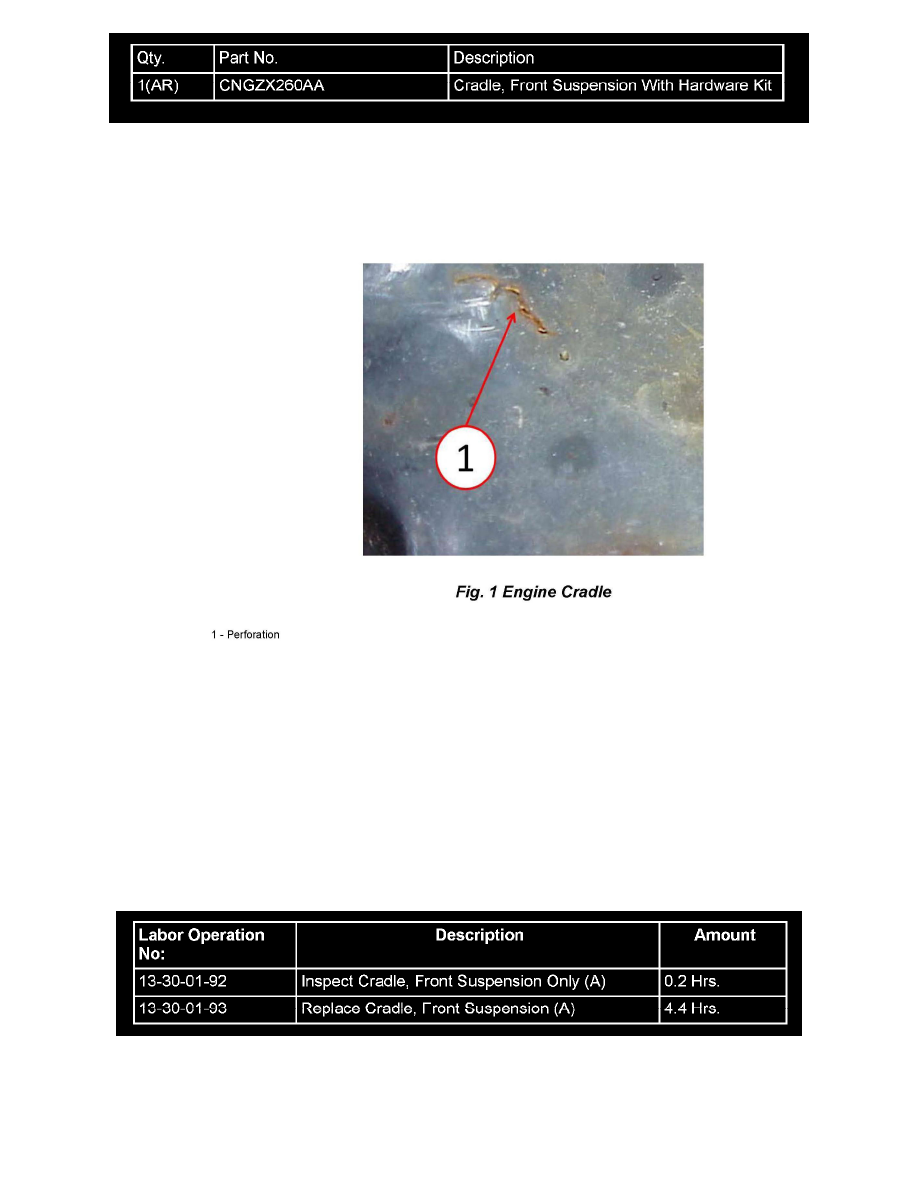

2. Inspect the engine cradle for perforation as shown in (Fig. 1). Was there any perforation found?
a. Yes >>> Proceed to Step # 3.
b. No >>> Continue further diagnosis this bulletin does not apply.
3. Remove and Replace Cradle, Front Suspension. Refer to the detailed removal/installation procedures available in DealerCONNECT >
TechCONNECT under: Service Info > 13 - Frames and Bumpers > Frame > Engine Cradle Crossmember > Removal/Installation > Front
Crossmember.
4. Return the vehicle to the customer.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
