Pacifica V6-3.8L VIN L (2005)

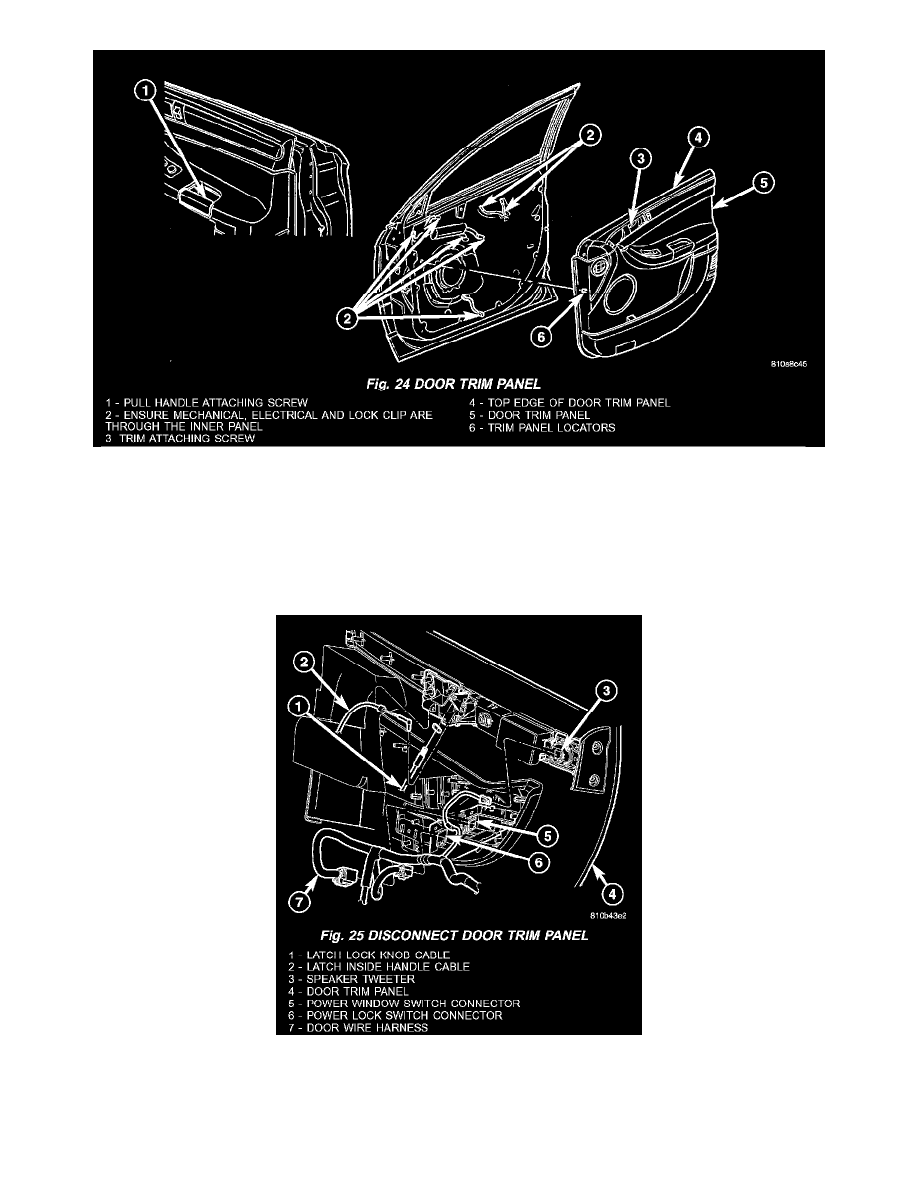

Fig. 24
4. Open armrest pull cup trim plug and remove screw from inside arm rest pull cup (Fig. 24).
5. Disengage push-in fasteners attaching trim to door panel around perimeter of trim panel.
6. Tilt trim panel outward to clear locator pins on backside of trim panel.
7. Disconnect trim panel from retainer channel in inner belt weatherstrip at top of door by lifting while gently jiggling.
CAUTION: Do not allow door trim panel to hang by the wire connector or wiring.
Fig. 25
8. Move top of trim panel away from door, while supporting bottom trim panel. (Fig. 25).
