Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1398002.png)

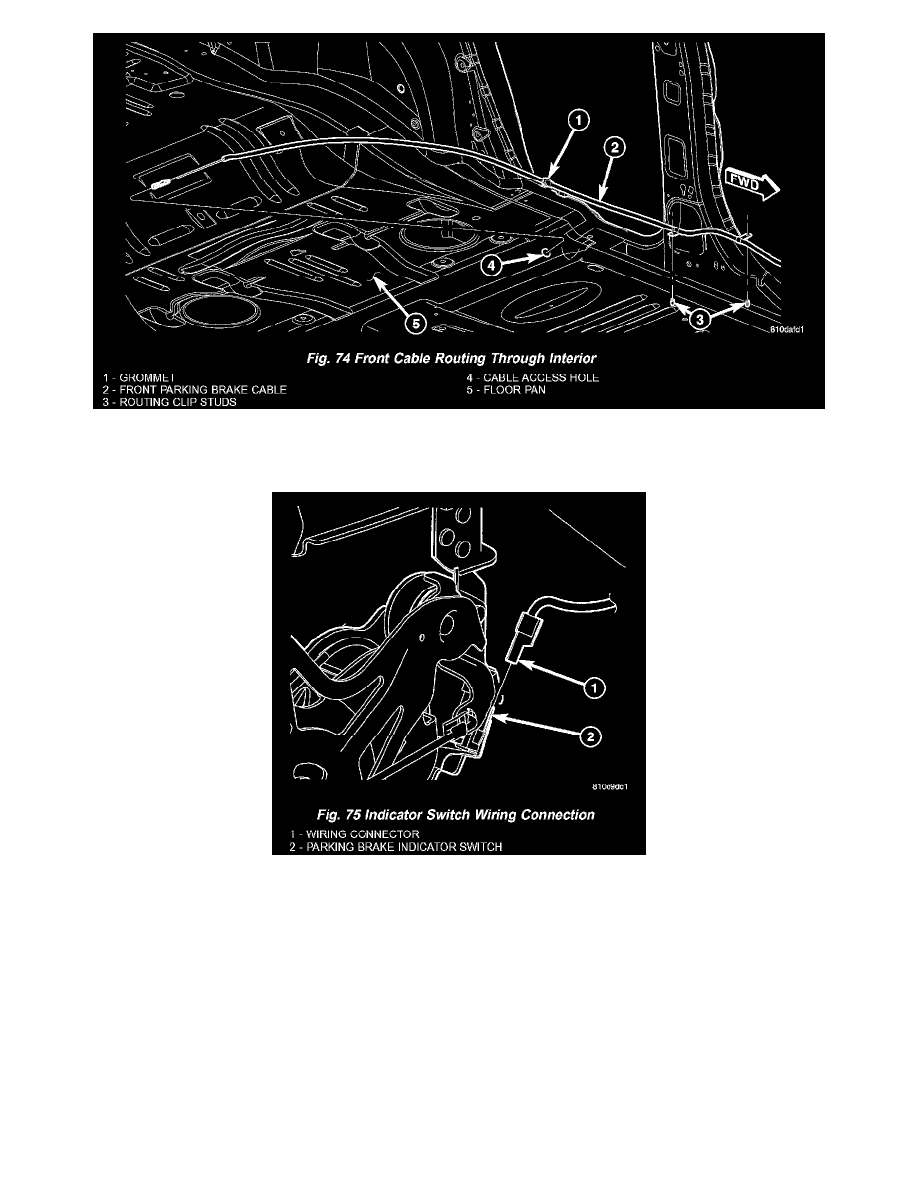

15) Remove cable routing clips from studs under left side carpet (Fig. 74).
16) Release grommet in floor pan and pull cable into passenger compartment (Fig. 74).
17) Disconnect release rod at parking brake lever.
18) Disconnect wiring connector at parking brake indicator lamp switch (Fig. 75).
19) Remove body control module.
20) Remove three mounting nuts and two wiring routing clips, then remove body control module mounting bracket.
