Pacifica V6-3.8L VIN L (2005)
Crankshaft Seal Retainer: Service and Repair
CRANKSHAFT REAR OIL SEAL RETAINER
REMOVAL
1) Remove crankshaft rear oil seal.
2) Remove oil pan.

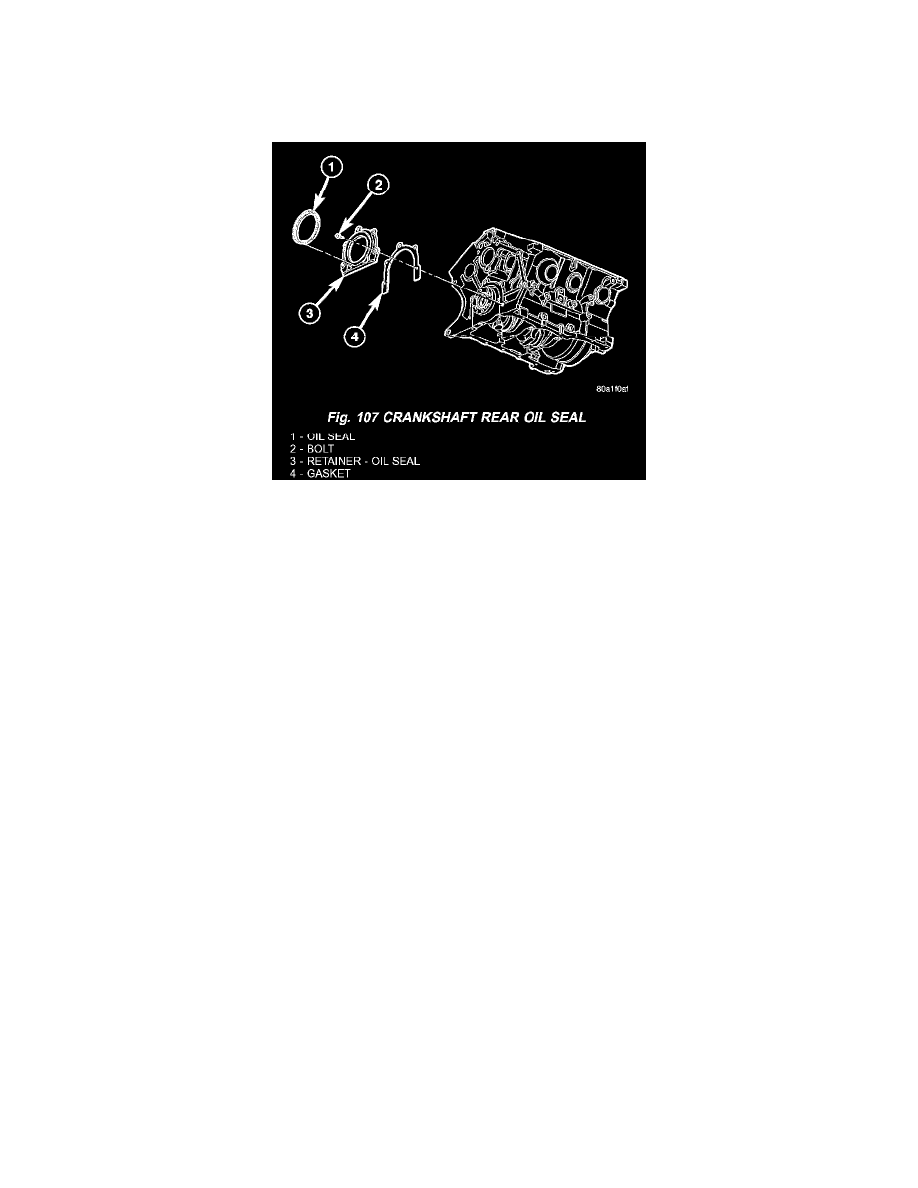

3) Remove oil seal retainer screws (Fig. 107).
4) Remove oil seal retainer (Fig. 107).
5) Clean engine block and retainer of oil and gasket material. Make sure surfaces are clean and free of oil.
INSTALLATION
1) Position new gasket and install retainer on block (Fig. 107). Tighten attaching screws to 12 Nm (105 inch lbs.).
2) Install oil pan.
3) Install oil seal.
