Pacifica V6-3.8L VIN L (2005)

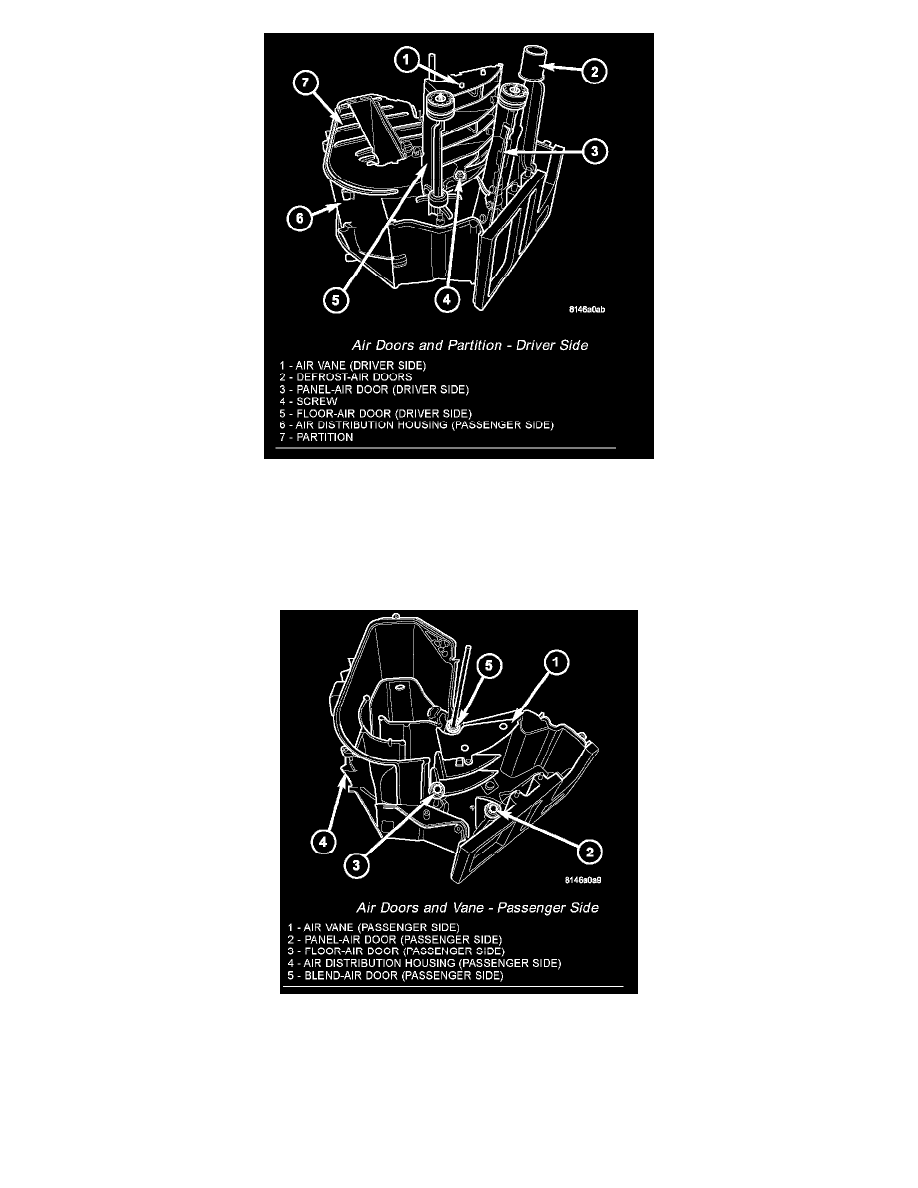

Air Door And Partition - Driver Side
11. Remove the screw that secures the driver side air vane to the passenger side of the air distribution housing and remove the vane.
NOTE: If the seal on any air door is deformed or damaged, the air door must be replaced.
12. Remove the air doors and the partition from the air distribution housing.
Air Doors And Vane - Passenger Side
13. Remove the screw that secures the passenger side air vane to the passenger side of the air distribution housing and remove the vane.
NOTE: If the seal on any air door is deformed or damaged, the air door must be replaced.
14. Remove the air doors from the passenger side of the air distribution housing.
