Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-2522001.png)
License Plate Lamp: Procedures
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.

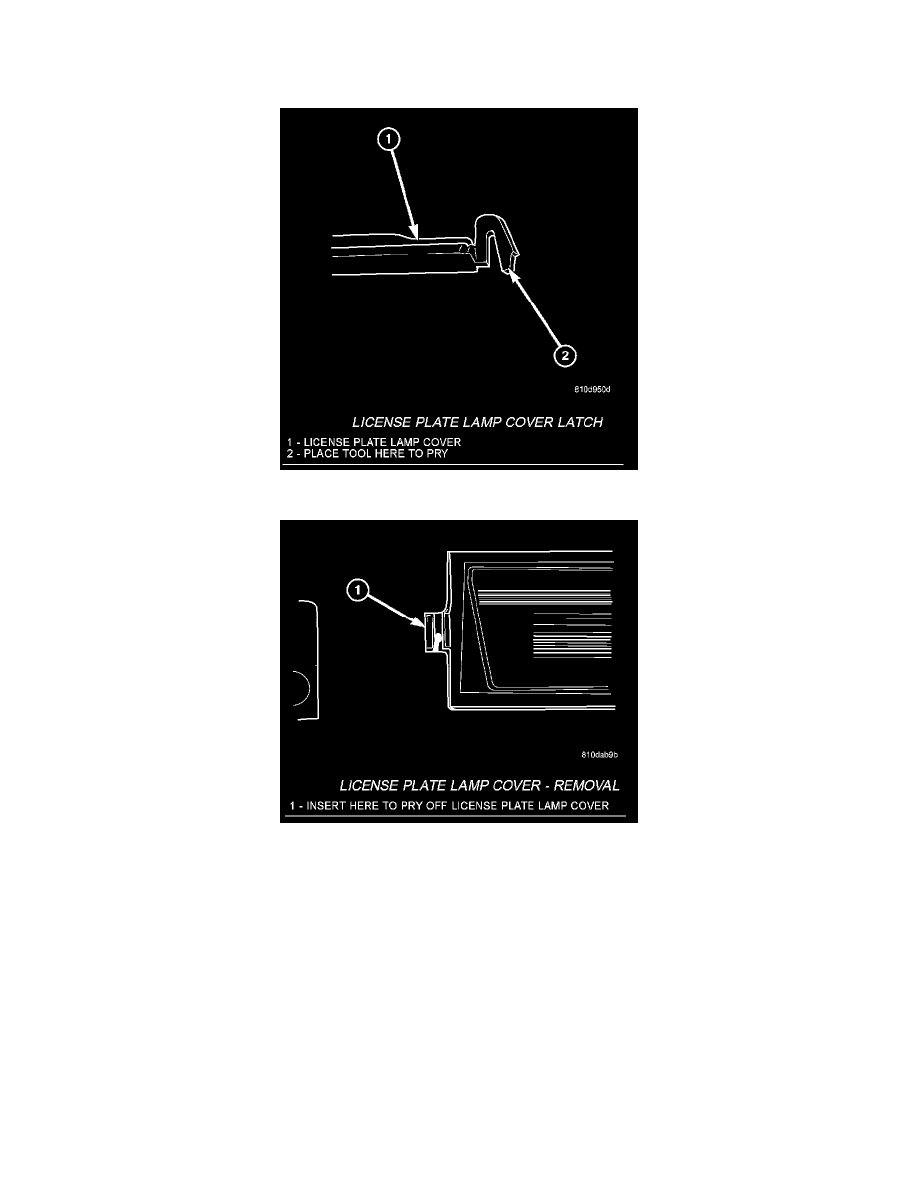

License Plate Lamp Cover Cover Latch
License Plate Lamp Cover - Removal
2. Using a trim stick (special tool #C-4755) or equivalent, gently pry in and then down on the left side of the lamp cover (shown reversed).
NOTE: If the license plate lamp unit, located within the liftgate light bar needs replacing.
INSTALLATION
1. Align lamp with slot in socket and firmly push straight in.
2. Position the lamp cover over retaining slots and firmly snap into place.
3. Connect the battery negative cable.
4. Verify vehicle and system operation.
5. Close hood.
