Pacifica V6-3.8L VIN L (2005)
Glove Box Lamp Switch: Service and Repair
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Open right door.
3. Open glove box.
4. Reach up behind instrument panel and disconnect the glove box lamp switch electrical connector.

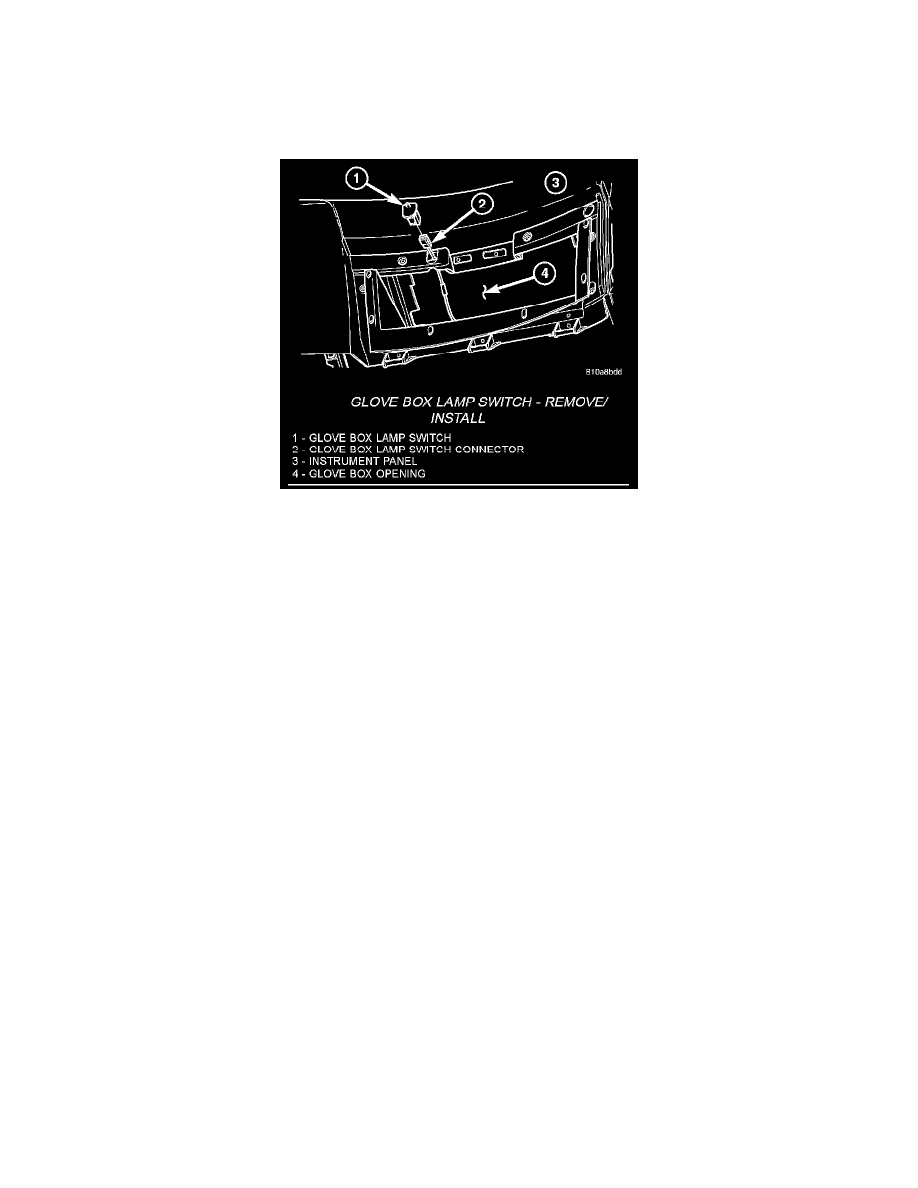

Glove Box Lamp Switch -remove/Install
5. Using a trim stick (special tool #C-4755) or equivalent, gently pry out glove box lamp switch from glove box opening surround.
6. If replacing the lamp, pull straight out of glove box lamp switch.
INSTALLATION
1. If replacing the lamp, push straight into glove box lamp switch.
2. Position lamp switch over retaining hole and firmly snap into place.
3. Reach up behind instrument panel, and connect the electrical connector.
4. Close glove box.
5. Close right door.
6. Connect the battery negative cable.
7. Close hood.
8. Verify vehicle and system operation.
