Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-2560001.png)
Combination Switch: Service and Repair
Multi-Function Switch Mounting Housing
REMOVAL
NOTE: Before starting this procedure, be certain to turn the steering wheel until the front wheels are in the straight-ahead position.
1. Disconnect and isolate the battery negative cable.
2. Remove the clock spring from the multi-function switch mounting housing.
3. Remove the left multi-function switch from the multi-function switch mounting housing (refer to above procedure).
4. Remove the right multi-function switch from the multi-function switch mounting housing.

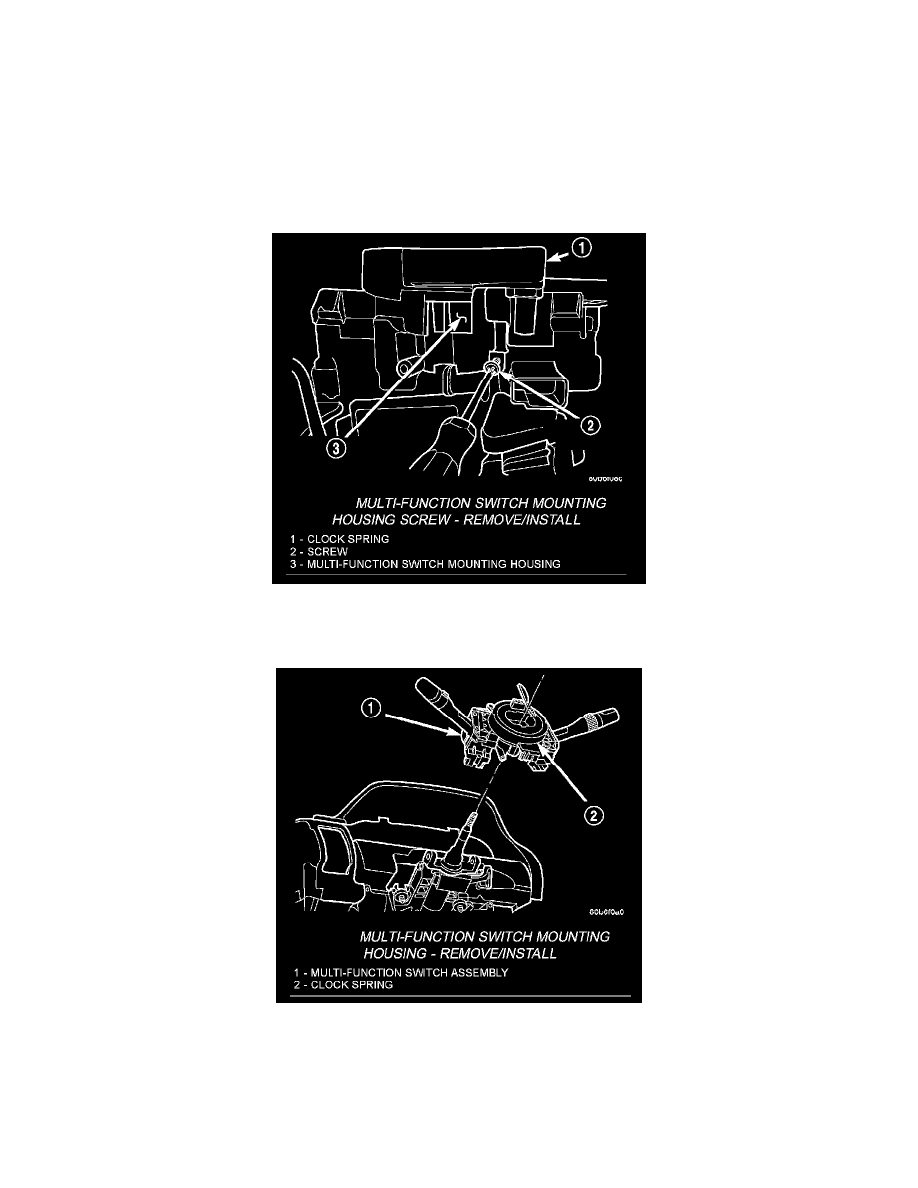

Multi-function Switch Mounting Housing Screw - Remove/Install
5. Remove the screw that secures the multi-function switch mounting housing to the steering column housing.
Multi-function Switch Mounting Housing - Remove /Install
