Pacifica V6-3.8L VIN L (2005)
Seat Belt Buckle: Service and Repair
Front
REMOVAL
It may be necessary to remove the front seat remove buckle off mounting stud.
1. Move seat to rearward most position.

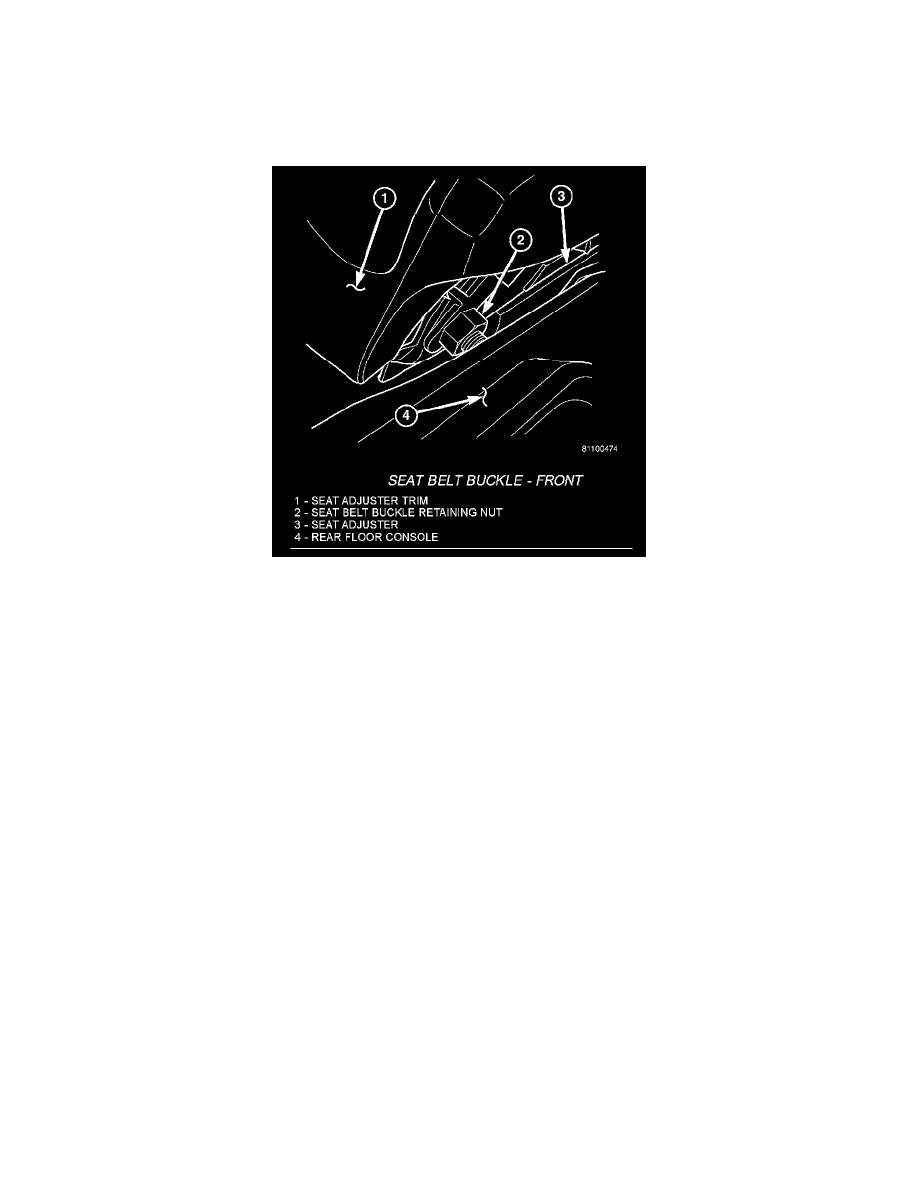

Seat Belt Buckle - Front
2. Remove buckle half retaining nut.
3. Carefully slide the buckle half off mounting stud.
4. Slide buckle half up through side cushion trim and remove from seat.
INSTALLATION
1. Slide buckle half down through side cushion trim and onto the mounting stud.
WARNING: A THREAD LOCKING COMPOUND IS APPLIED TO THE THREADS AT THE FACTORY. ONCE THE RETAINING
NUT IS REMOVED A THREAD LOCKING COMPOUND SHOULD BE REAPPLIED DURING INSTALLATION.
2. Install the buckle half retaining nut. Torque nut to 40 N.m (30 ft. lbs.).
3. Move seat to original customer position. It may have been necessary to remove the front seat to remove buckle off mounting stud.
