Pacifica V6-3.8L VIN L (2005)

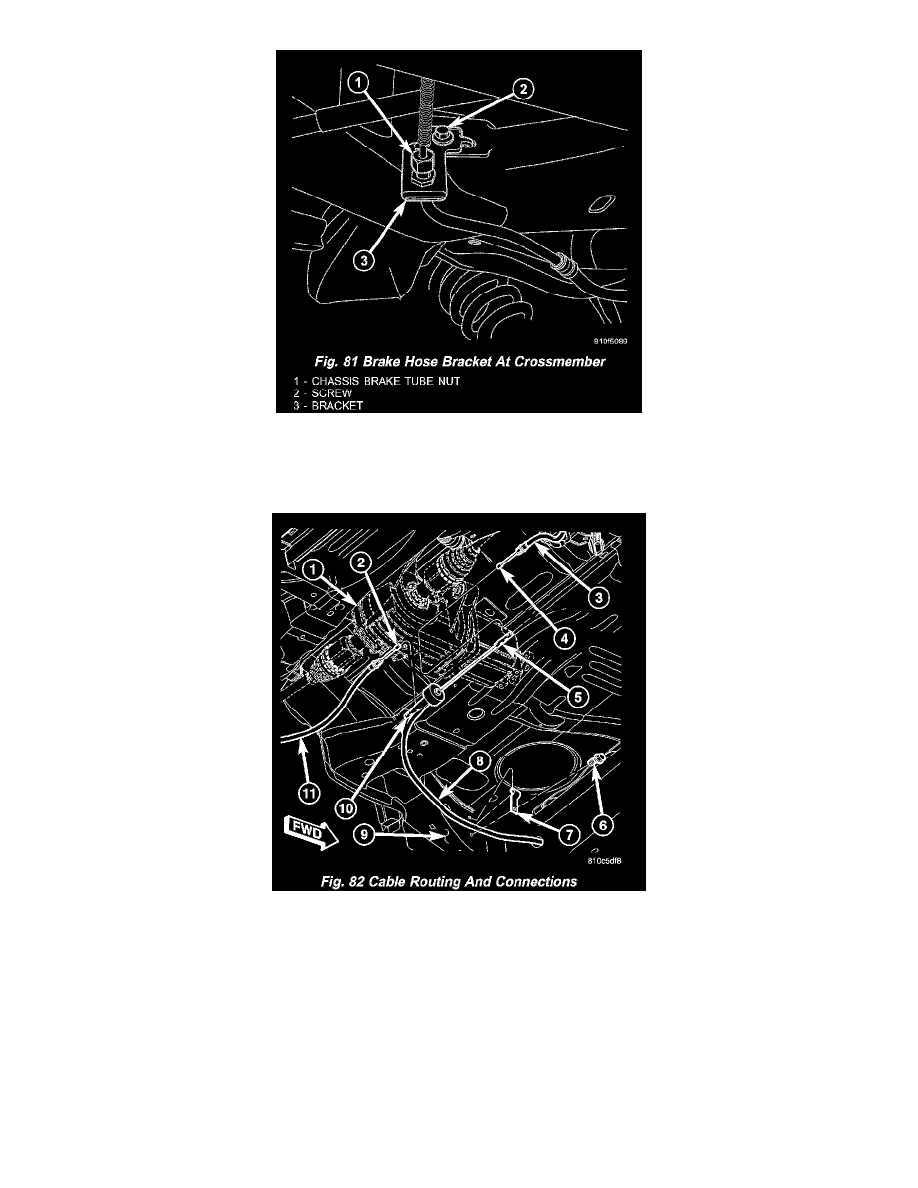

Fig. 81
26. Install screw mounting right rear brake hose routing bracket to front of rear crossmember (Fig. 81).
27. Install screw mounting left rear brake hose routing bracket to front of rear crossmember (Fig. 81).
Fig. 82
28. While holding cable connector on end of front cable secure with a pair of pliers at the front cable button, Place right rear cable button into cable
connector (Fig. 82). Release cables allowing button to seat. It may take some hand pressure to completely seat button.
29. Place left rear parking brake cable button into equalizer (Fig. 82). Release cables allowing button to seat. It may take some hand pressure to
completely seat button.
30. Install rear half of exhaust system.
31. Install both hub and bearings with wheel speed sensors as well as all components necessary to access them.
32. Install tire and wheel assemblies. Tighten wheel mounting nuts to 135 N.m (100 ft.lbs.) torque.
33. Lower vehicle.
34. Unlock automatic adjuster in parking brake lever.
35. Connect battery negative cable to battery post.
36. Install spare tire under vehicle.
37. Position vehicle on alignment rack/drive-on hoist. Raise vehicle as necessary to access mounting bolts.
