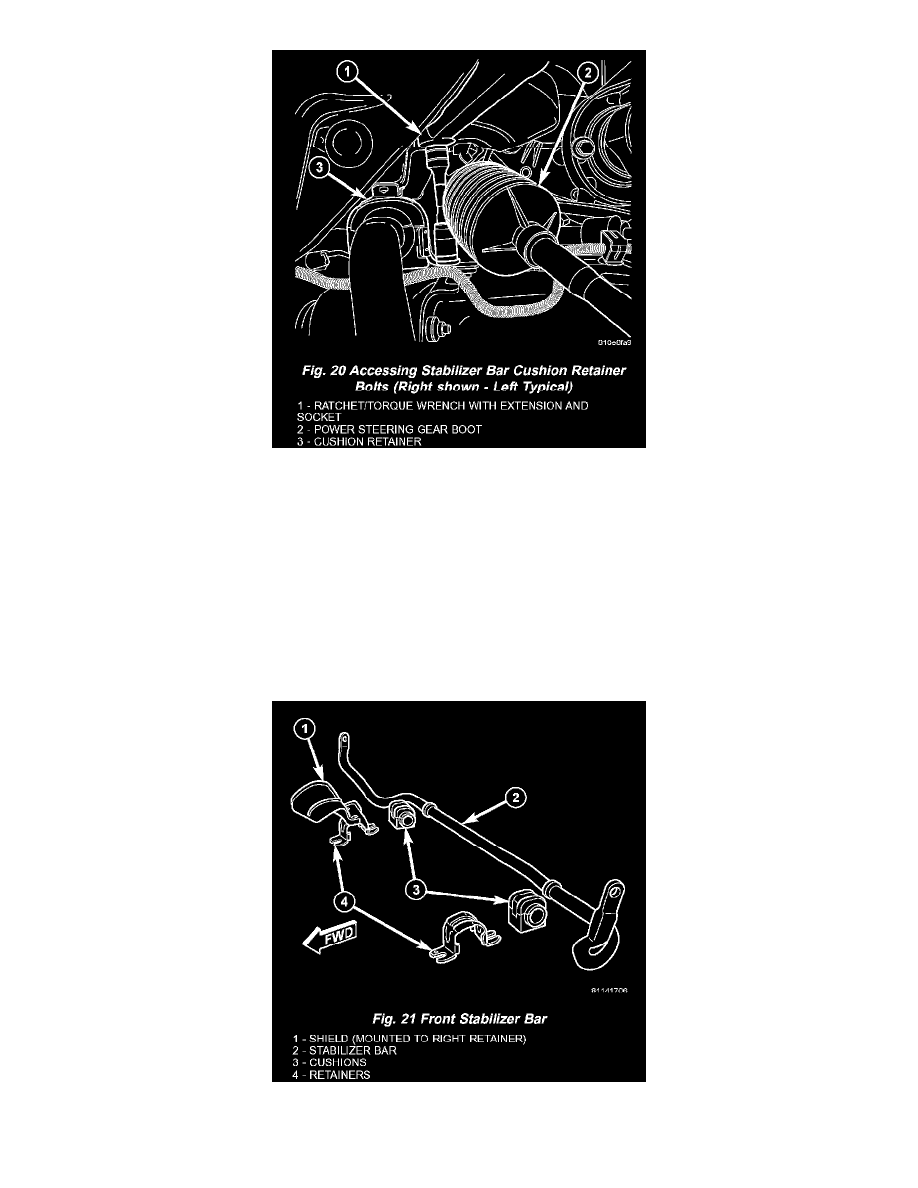

6. Remove stabilizer bar cushion retainers as follows (Fig. 20):
a. Loosen front bolts at each retainer (Do not remove). An open-end wrench works best, but a socket may be used if correct length extension is
used.
b. Remove rear bolts at each retainer.
c. Slide stabilizer toward rear of vehicle.
d. Remove both retainers and cushions from bar.
7. Remove stabilizer bar out through right wheel opening by carefully rotating bar up-and-down, and back-and-forth as necessary.
INSPECTION
Inspect for broken or distorted stabilizer bar bushings (cushions), bushing retainers, and worn or damaged stabilizer bar links. Also inspect retainers
for damaged heat shields and missing or damaged rivets.
INSTALLATION
NOTE: When installing stabilizer bar, make sure it installed so that bar curves upward at ends to meet stabilizer links (Fig. 21).
1. Insert stabilizer bar over cradle through right front wheel opening in reverse direction it was removed in. Ensure bar gets routed in front of brake
