Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1585001.png)
Wheel Hub: Service and Repair
Rear Suspension
HUB / BEARING
REMOVAL
NOTE: Before proceeding, Refer to Service Precautions.
1. Raise and support vehicle.
2. Remove tire and wheel assembly.
3. If equipped with AWD:

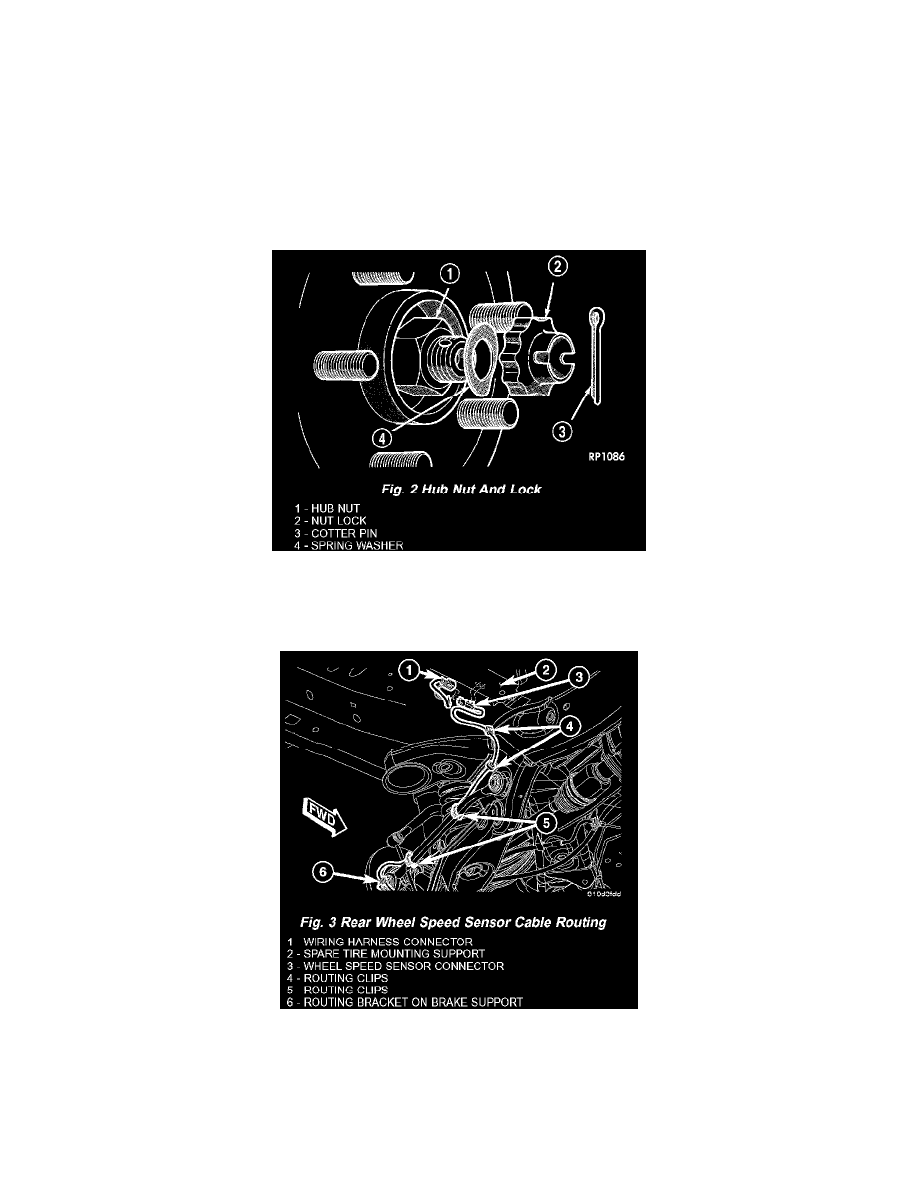

a. Remove cotter pin, nut lock and spring washer from half shaft (Fig. 2).
b. While a helper applies brakes to keep hub from turning, remove hub nut (Fig. 2).
4. Remove brake caliper and rotor from hub and bearing assembly.
5. Disconnect vehicle wiring harness from wheel speed sensor connector (Fig. 3).
6. Unclip wheel speed sensor connector from spare tire mounting support (Fig. 3).
7. Disconnect two sensor cable routing clips on rear suspension crossmember (Fig. 3).
8. Disconnect two sensor cable routing clips along toe link (Fig. 3).
9. Disconnect sensor cable from bracket on brake support (Fig. 3).
