Cruise Control Servo: Locations

Component ID:

346

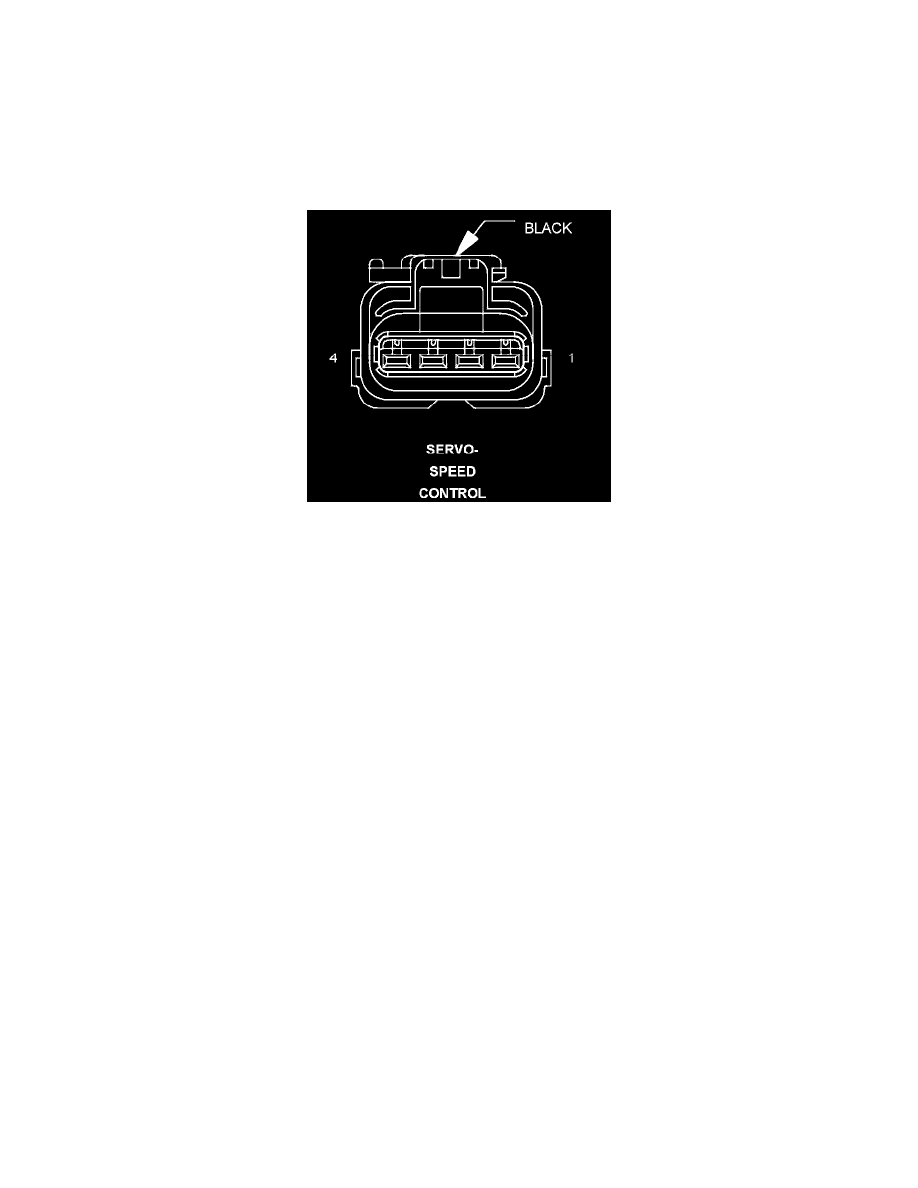

Component :

SERVO-SPEED CONTROL

Connector:

Name :

SERVO-SPEED CONTROL

Color :

BLACK

# of pins :

4

Pin

Circuit

Description

  1

V36 20VT/YL

S/C VACUUM CONTROL

  2

V35 20VT/OR

S/C VENT CONTROL

  3

V397 20VT/BR

S/C BRAKE SWITCH OUTPUT

  4

Z902 20BK

GROUND

Component Location - 1
