PT Cruiser L4-2.4L Turbo VIN G (2004)
Vacuum Brake Booster: Service and Repair
Removal and Installation (Left Hand Drive)
REMOVAL- LHD
NOTE: Before proceeding, Refer to Service Precautions.
1. Remove the air cleaner cover and hose to the throttle body.
2. Remove the air cleaner housing by pulling straight up.
3. Disconnect negative (ground) cable from the battery and isolate the cable.
4. Unlatch the power distribution center, lift it up, and move it to the side.
5. Remove the master cylinder.
6. If the vehicle is equipped with ABS, remove the Integrated Control Unit (ICU).

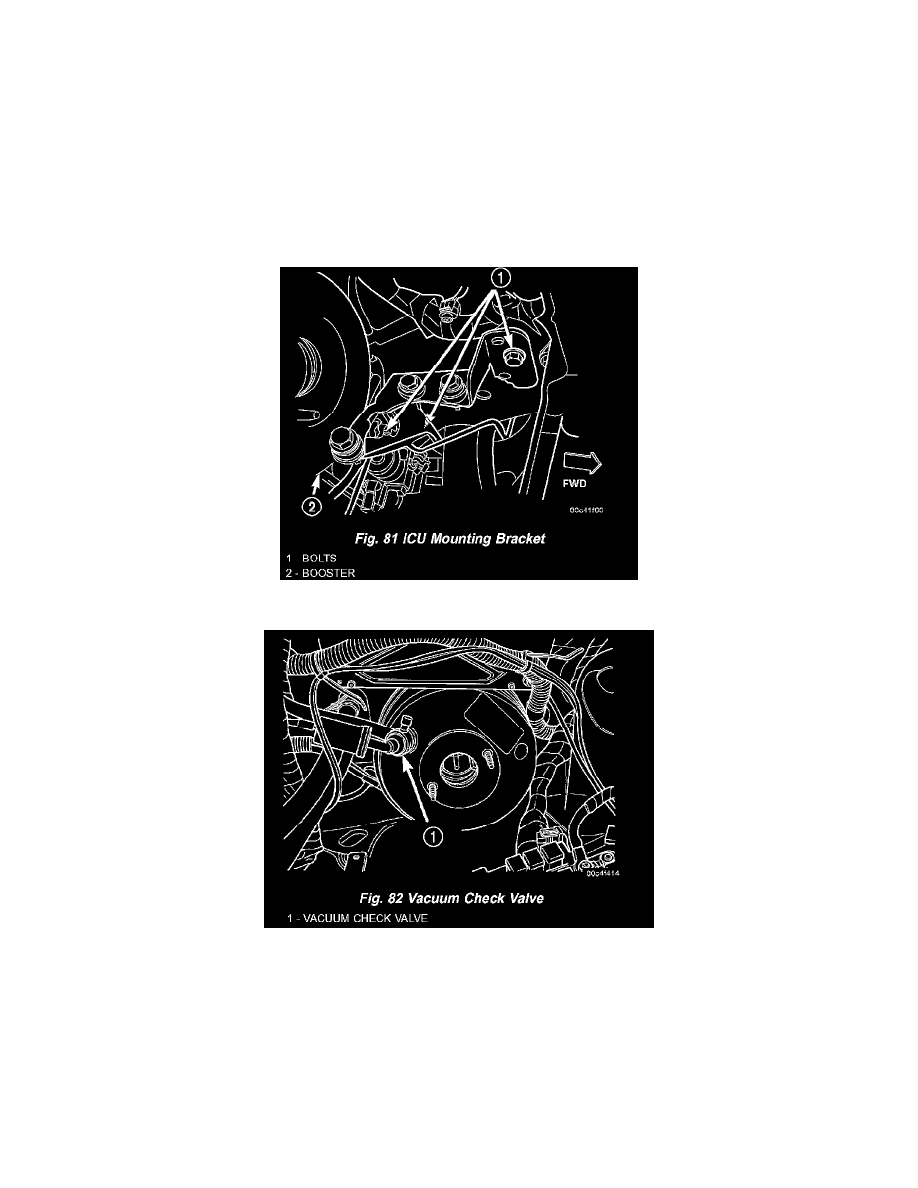

7. If the vehicle is equipped with ABS, remove the three bolts securing the ICU mounting bracket to the frame rail.
8. Disconnect the vacuum hoses from the check valve on the power brake booster, but do not remove the check valve from Dower brake booster.
9. Inside the vehicle, remove the silencer pad below the knee blocker.
10. Fold down and remove the knee blocker.
