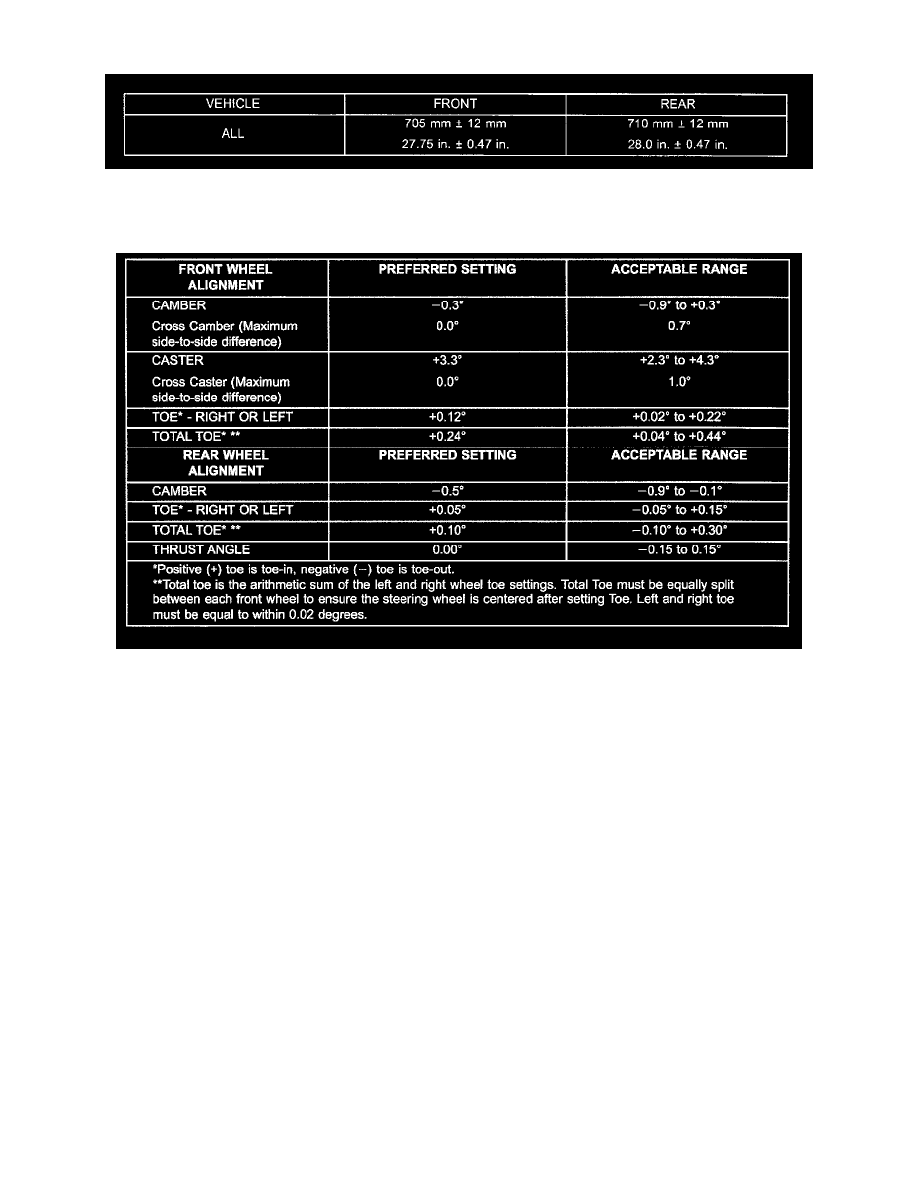

Alignment: Specifications

Curb Height Adjustments

CURB HEIGHT SPECIFICATIONS

Wheel Alignment Specifications

WHEEL ALIGNMENT

NOTE: All wheel alignments are to be set with the vehicle at its proper curb height.

NOTE: All specifications are given in degrees.
