Drive Belt: Specifications (page 4 of 5)
- Make
- Chrysler
- Model
- Sebring Convertible
- Engine
- V6-2.7L
- Year
- 2009
- Section
- Drive Belt
MaintenanceSpecifications · page 4 of 5
Drive Belt: Testing and Inspection
ACCESSORY DRIVE BELT

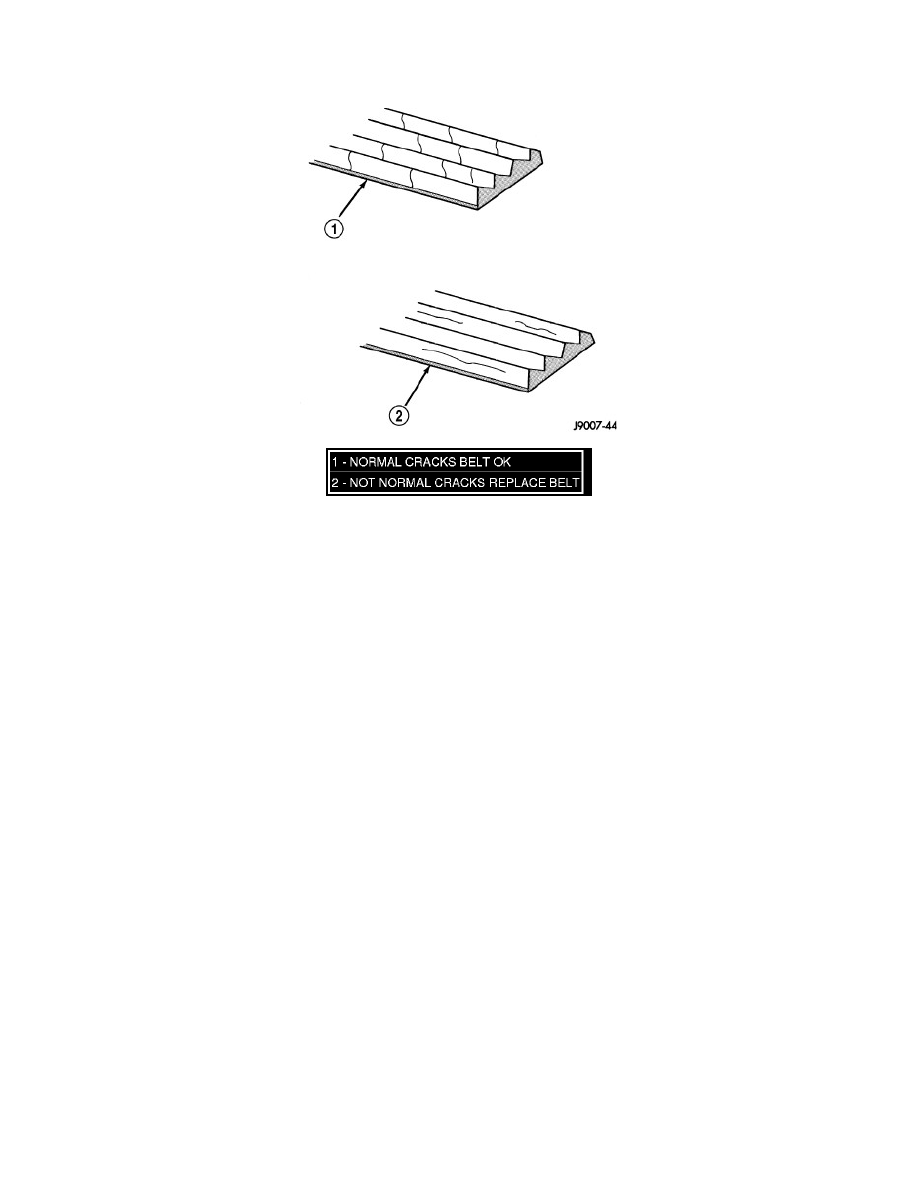

When diagnosing accessory drive belts, small cracks (1) that run across ribbed surface of belt from rib to rib, are considered normal. These are not a
reason to replace belt. However, cracks running along a rib (not across) are not normal. Any belt with cracks running along a rib must be replaced. Also
replace belt if it has excessive wear, frayed cords or severe glazing.
ACCESSORY DRIVE BELT DIAGNOSIS CHART
