Fuse: Locations

SPECIFICATIONS

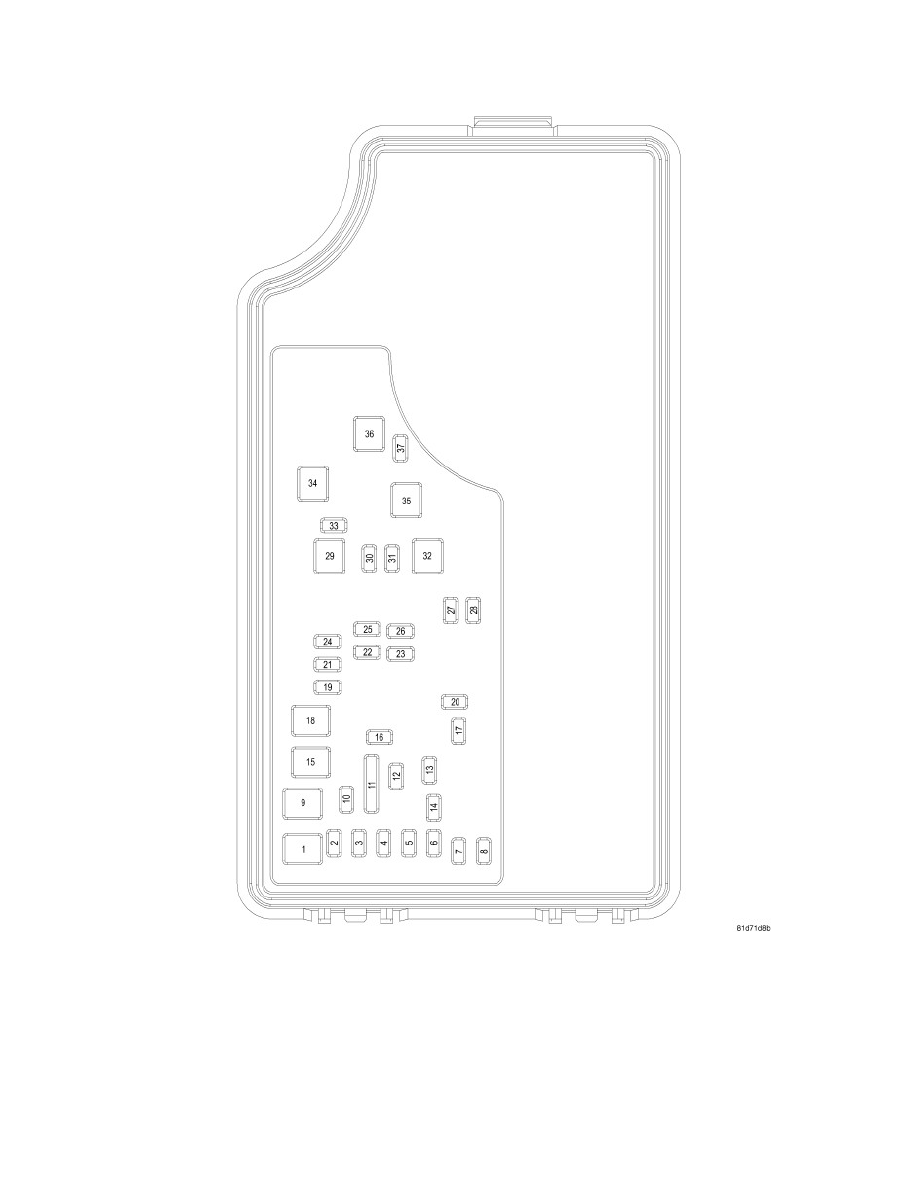

A Totally Integrated Power Module is located in the engine compartment near the air cleaner assembly. This center contains cartridge fuses and mini
fuses.
