Sebring Coupe V6-3.0L VIN H (2005)

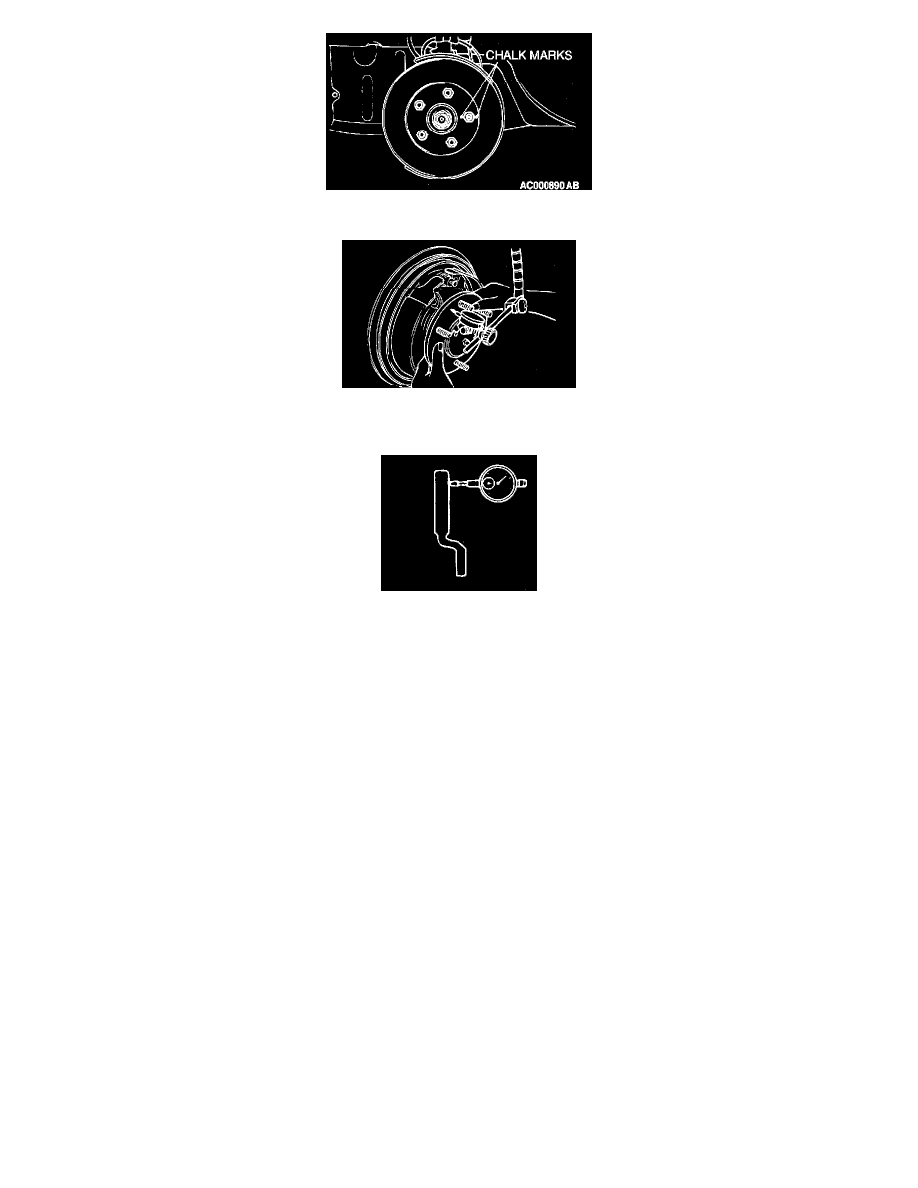

1) Before removing the brake disc, place a mating mark on both the wheel stud and disc with chalk where the run-out is greatest.
2) Place a dial gauge as shown in the illustration, and then move the hub in the axial direction and measure the play.
Limit: 0.05 mm (0.002 inch)
3) If the play does not exceed the limit install the brake disc at a different phase, and then check the run-out of the brake disc again.
5. If the run-out cannot be corrected by changing the phase of the brake disc, replace the disc.
