Sebring Coupe V6-3.0L VIN H (2005)
Fuel Tank Unit: Service and Repair
FUEL PUMP MODULE REPLACEMENT

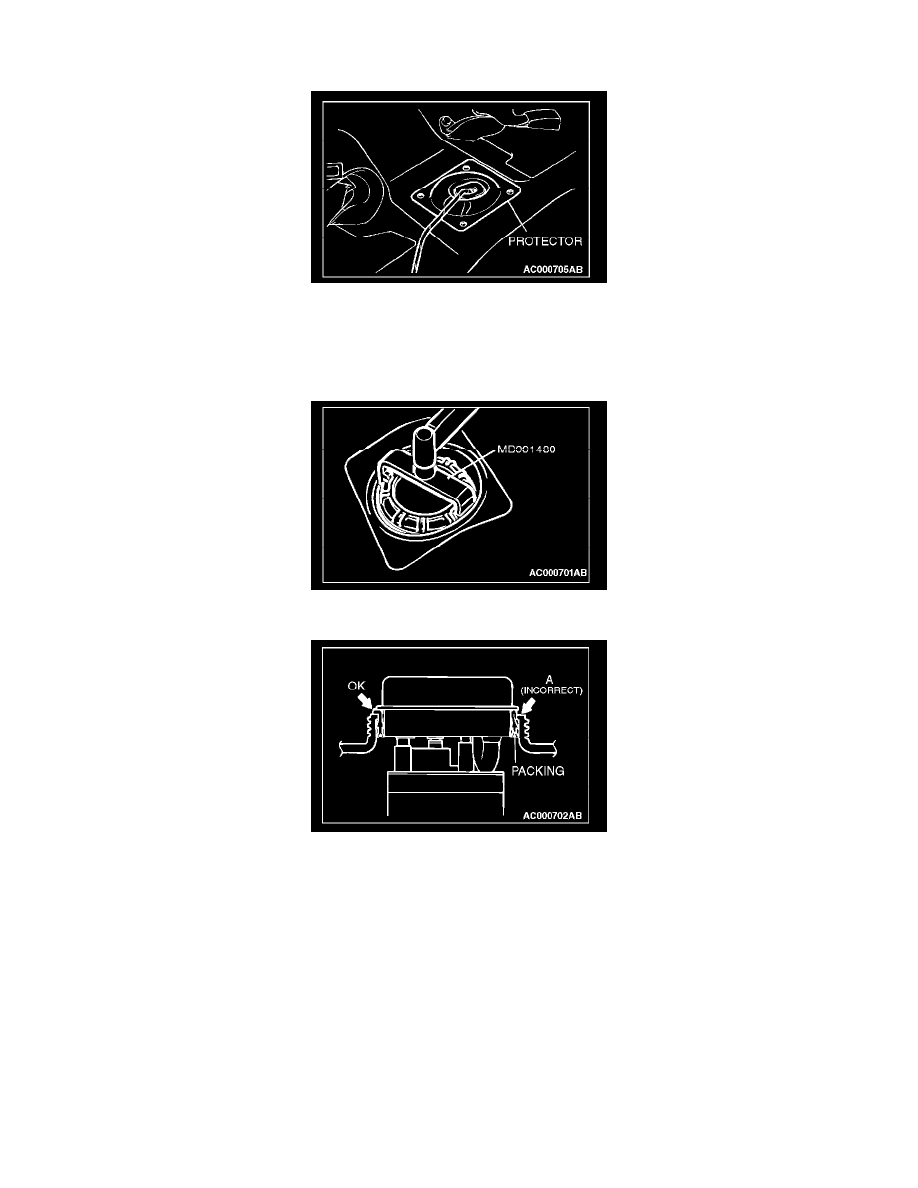

1. Remove the rear seat cushion.
2. Remove the protector.
3. Bleed the residual pressure from inside the fuel pipe line to prevent the fuel from spraying out. [Refer to On-vehicle Service Fuel Pump Connector
Disconnection (How to Reduce Pressurized Fuel Line)] <2.4L - ENGINE> [Refer to On-vehicle Service Fuel Pump Connector Disconnection
(How to Reduce Pressurized Fuel Line)] <3.0L ENGINE>
4. Disconnect the hose and connector connections, and then use special tool MB991480 to remove the fuel pump module.
CAUTION: Install the packing to the fuel tank,and then install the fuel pump module to the fuel tank. Installing the packing to the fuel pump
module will damage the packing lip when installing the fuel pump module to the fuel tank, and fuel leakage will occur.
5. Check that the fuel tank is not damaged or deformed, and then securely install the packing to the fuel tank.
NOTE: If the packing is damaged or deformed, replace with new packing.
CAUTION:
-
Do not tilt the fuel pump module when installing.
-
The packing should not be folded over as shown by "A" in the illustration.
6. Apply soap water to the inside of the packing, and then install the fuel pump module.
