Sebring Coupe V6-3.0L VIN H (2005)
CAUTION: When Tightening, be careful not to let the fuel pump module turn together with the cap. If the mating marks are misaligned, the
float may measure a remaining amount of fuel in correctly, causing the low fuel warning light to malfunction.

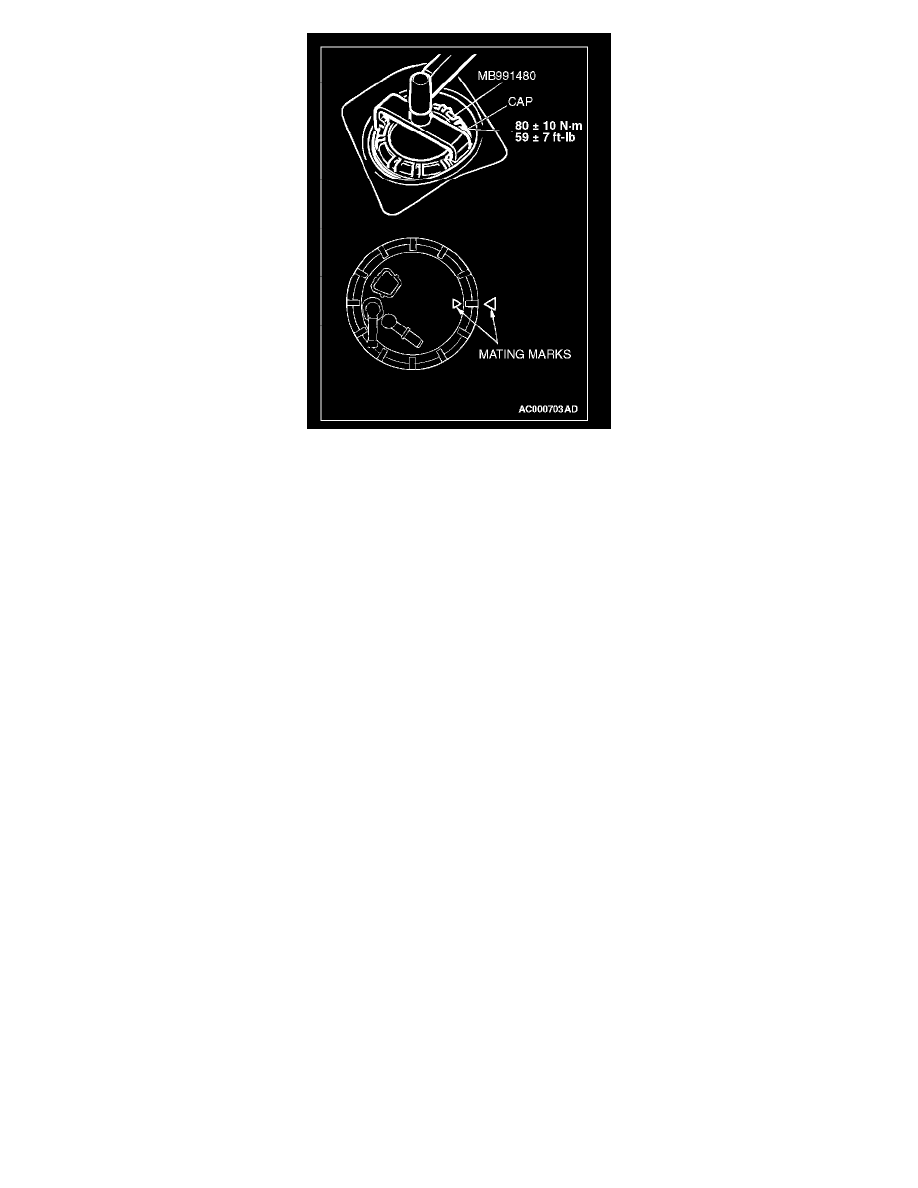

7. Use special tool MB991480 to align the mating marks on the fuel tank and fuel pump module, and tighten the cap to the specified torque.
Tightening torque: 80 ± 10 N-m (59 ± 7 ft-lb)
8. Check for leaks from the installation section of the fuel pump module by the following procedure.
1. Apply soapy water to the inside diameter of the cap.
2. Choke the vapor hose and main hose, apply an internal pressure of 10 kPa (1.45 psi) or less from the return hose and check that no bubbles
form in the soapy water.
9. Connect the connector, and then install the protector.
10. Install the rear seat cushion.
