Sebring Coupe V6-3.0L VIN H (2005)
Throttle Body: Service and Repair
Removal and Installation

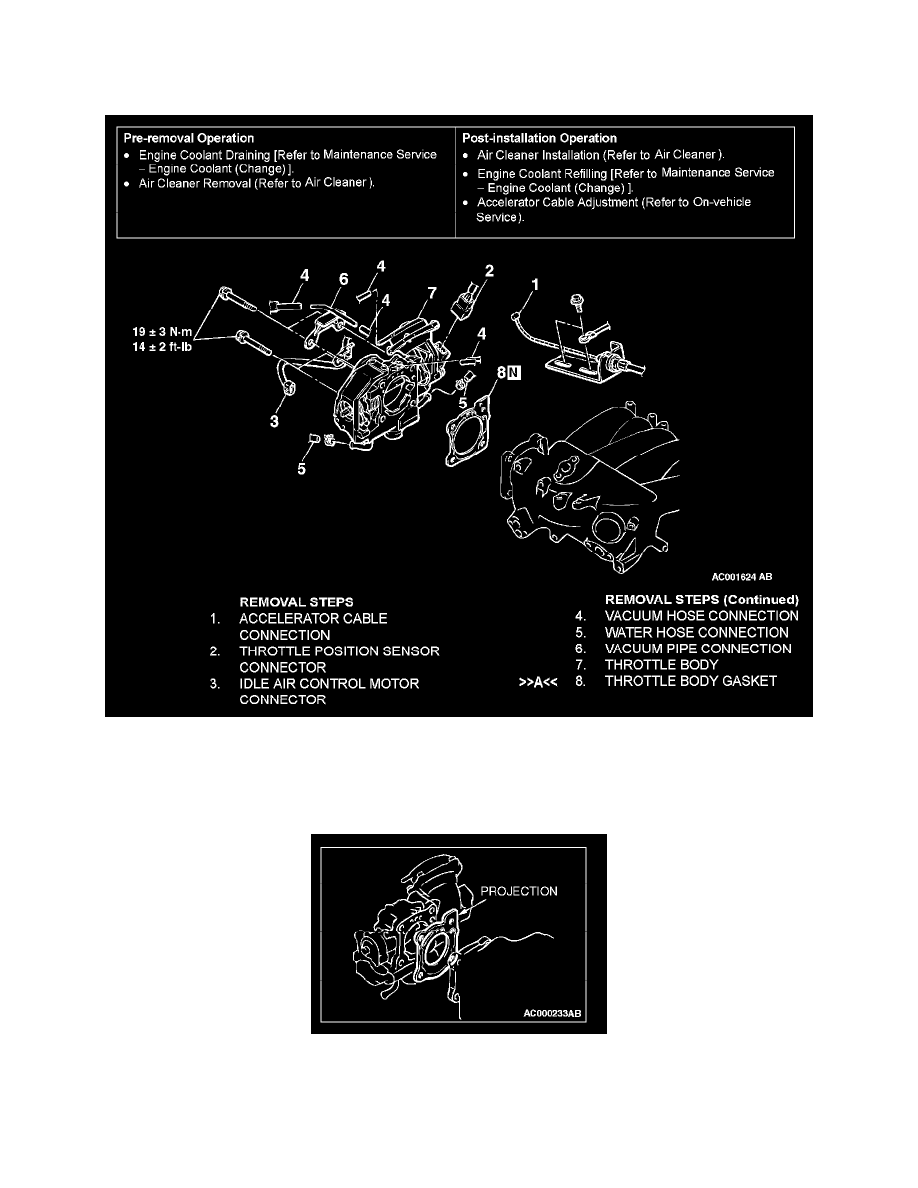

THROTTLE BODY ASSEMBLY
Throttle Body Assembly
REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT

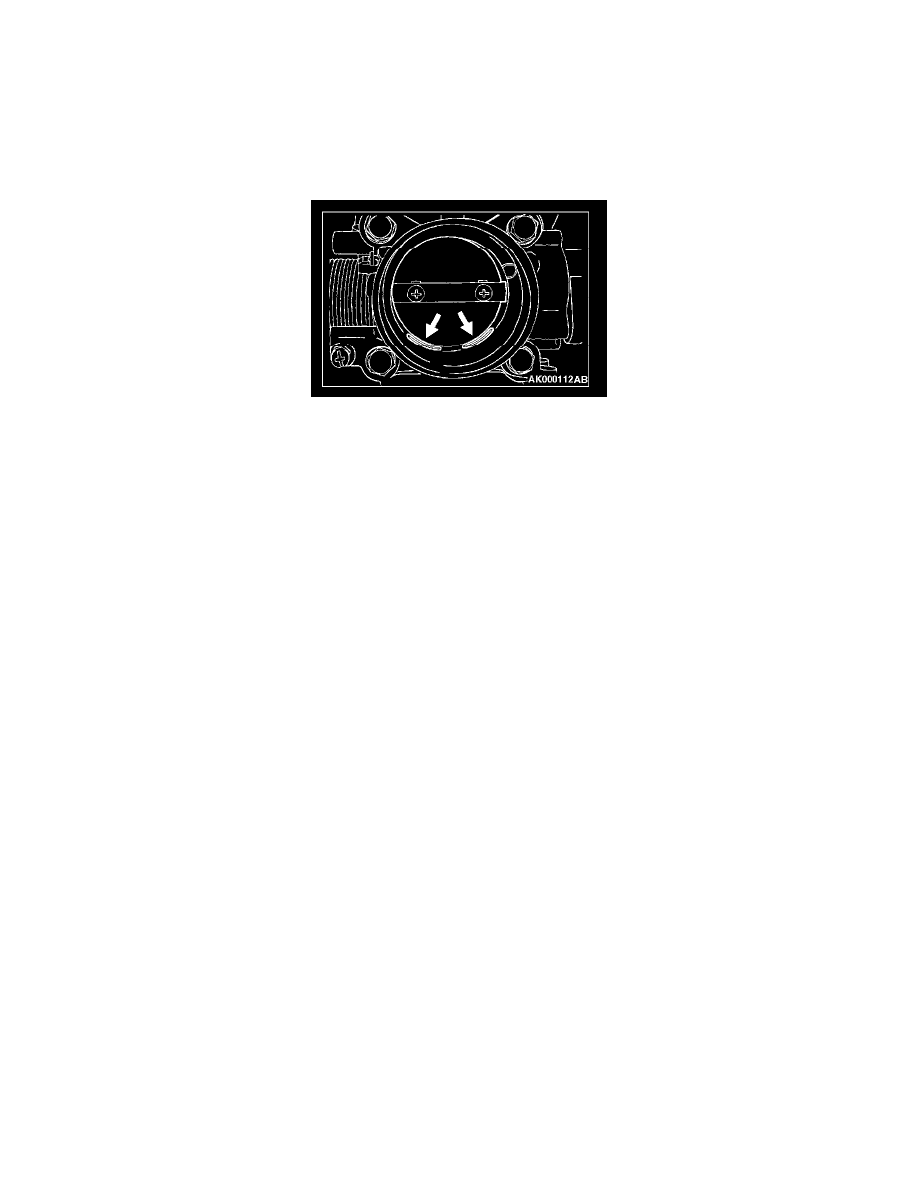

>>A<< THROTTLE BODY GASKET INSTALLATION CAUTION
Poor idling etc. may result if the throttle body gasket is installed incorrectly. Install the throttle body gasket as shown in the illustration.
