Sebring Coupe V6-3.0L VIN H (2005)
Throttle Body: Service and Repair
Disassembly and Assembly
DISASSEMBLY AND ASSEMBLY

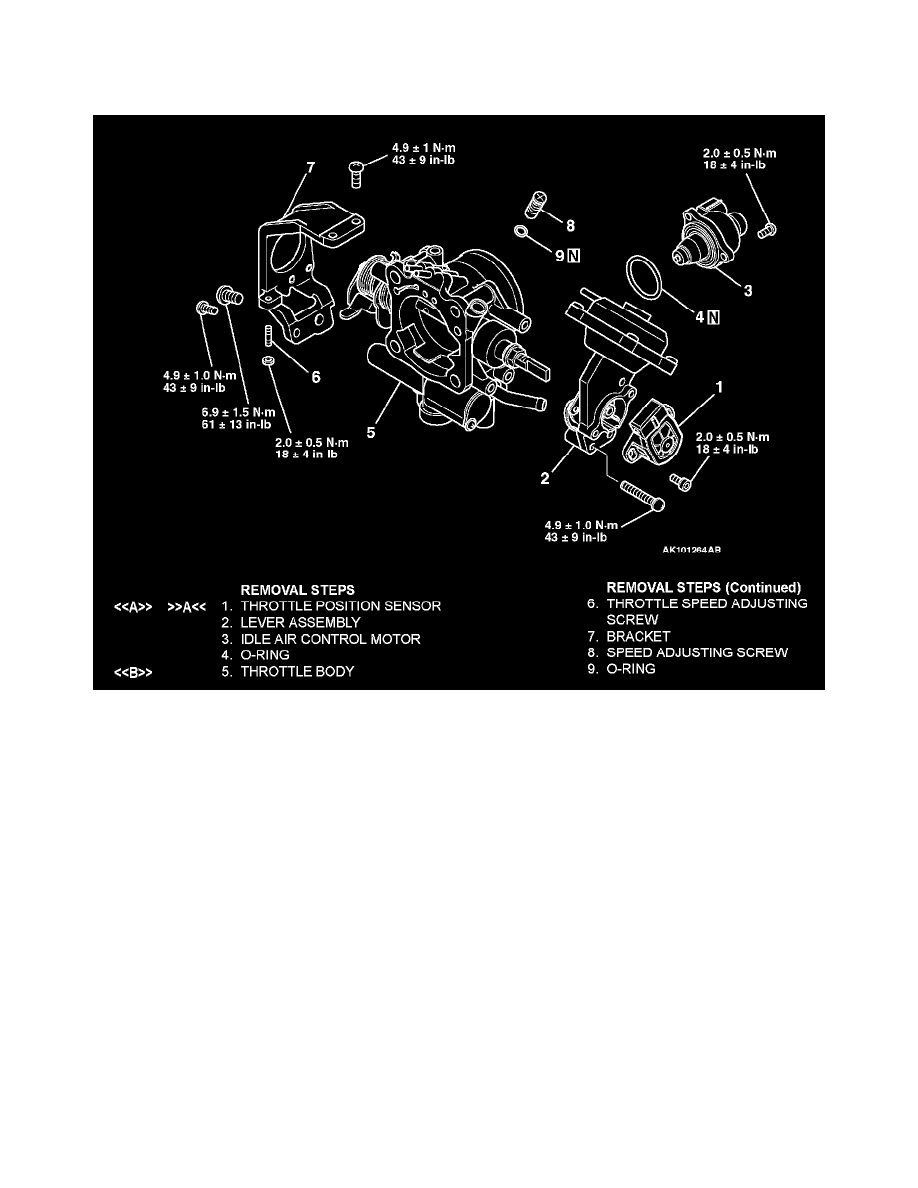

Disassembly And Assembly
NOTE: If the adjusting screw was happen to have been removed, perform speed adjusting screw adjustment.
DISASSEMBLY SERVICE POINTS
<<A>> THROTTLE POSITION SENSOR DISASSEMBLY
1. Do not disassemble the sensor and motor.
2. Do not clean the sensor and motor by dipping them into cleaning solvent. Clean them with shop towel.
<<B>> THROTTLE BODY DISASSEMBLY
1. Do not disassemble the throttle body.
2. Check if the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.
ASSEMBLY SERVICE POINTS
>>A<< THROTTLE POSITION SENSOR (TPS) INSTALLATION
