Sebring Coupe V6-3.0L VIN H (2005)
Ignition Control Module: Testing and Inspection
IGNITION COIL AND IGNITION POWER TRANSISTOR
Required Special Tool:
-
MB991348: Test Harness Set

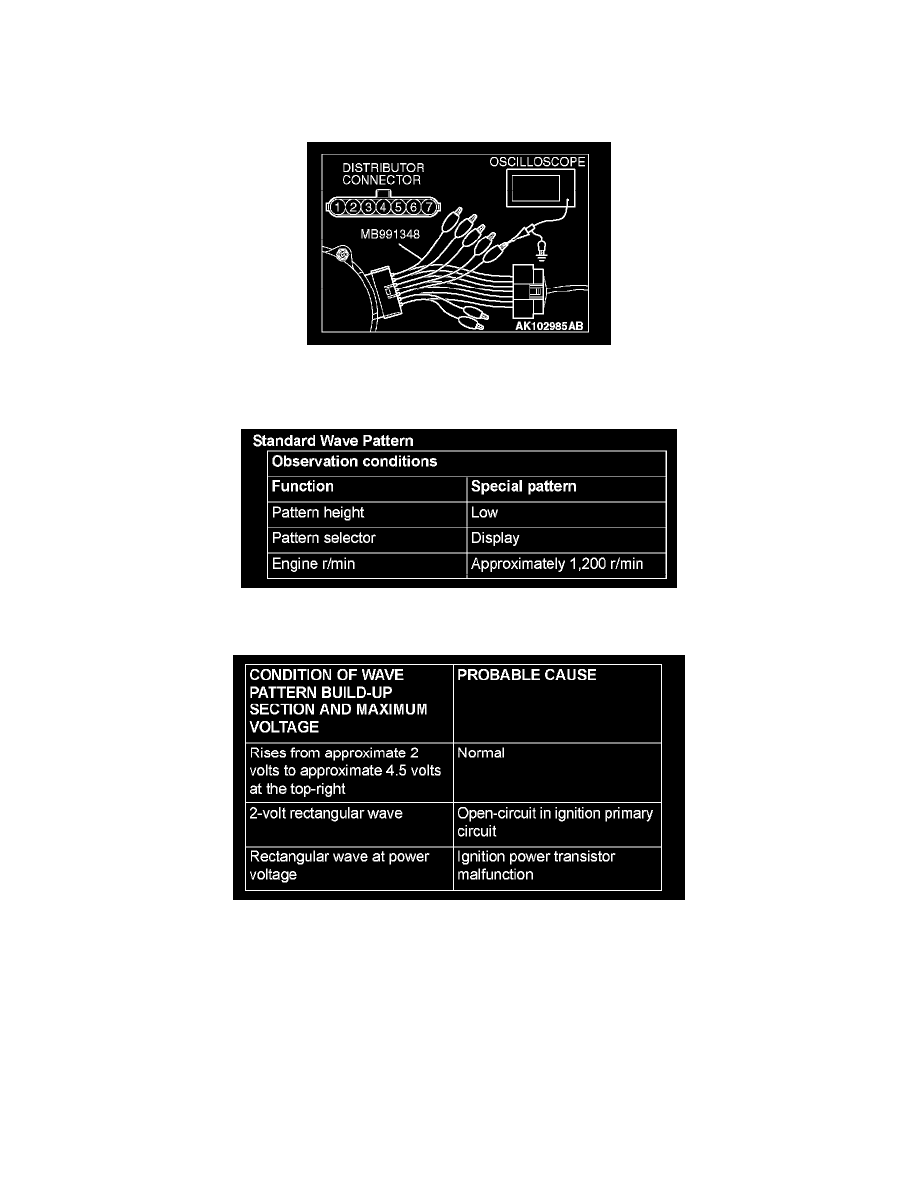

Measurement Method
1. Disconnect the connector, and connect test harness special tool, (MB991348), in between. (All terminals should be connected.)
2. Connect the oscilloscope probe to ignition coil connector terminal 3.
Alternate method (Test harness not available)
1. Connect the oscilloscope probe to ECM <M/T> or PCM <A/T> terminal 11.
