Sebring Coupe V6-3.0L VIN H (2005)

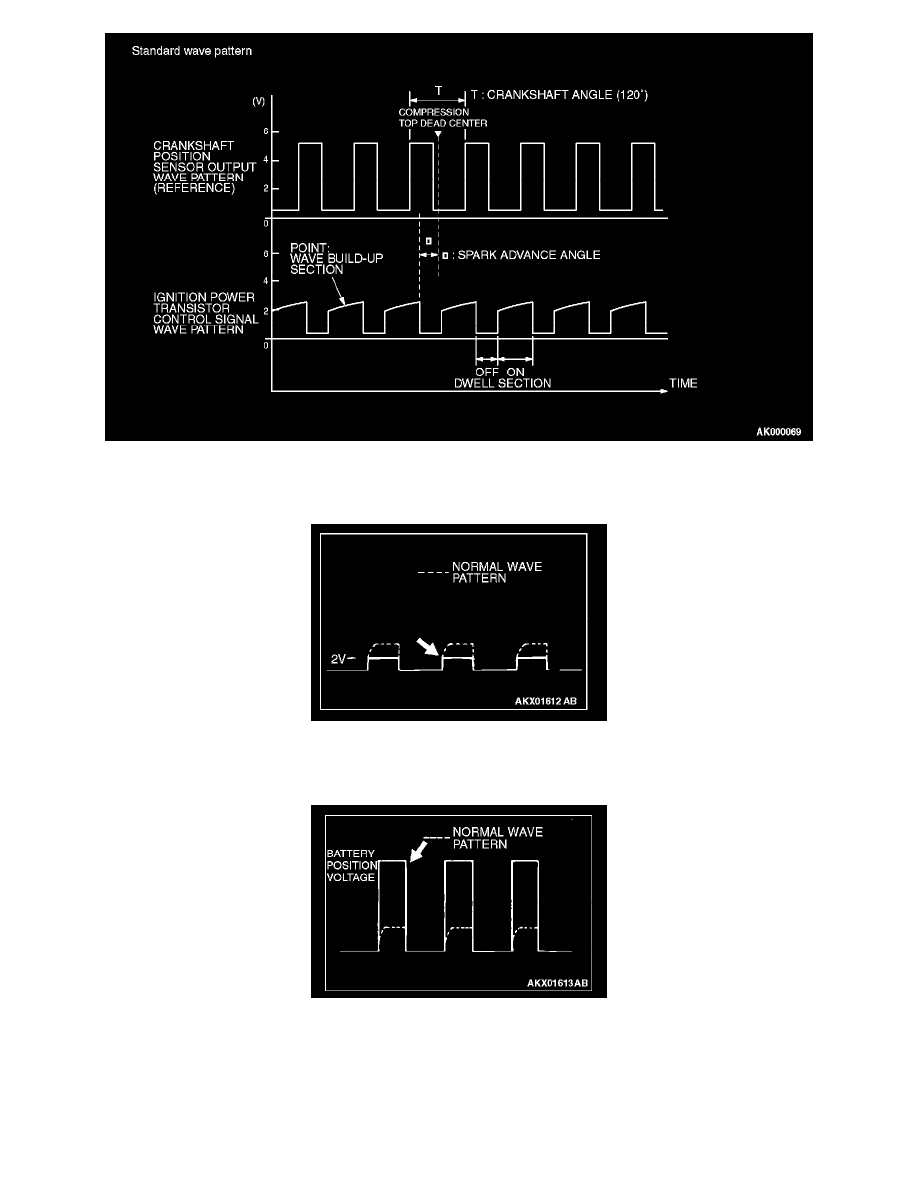

Wave Pattern Observation Points
Point: Condition of wave pattern build-up section and maximum voltage (Refer to abnormal wave pattern examples 1 and 2.
Examples of Abnormal Wave Patterns Example 1 (Wave pattern during engine cranking)
-
Cause of problem Open-circuit in ignition primary circuit
-
Wave pattern characteristics Top-right part of the build-up section cannot be seen, and voltage value is approximately 2 volts too low.
Example 2 (Wave pattern during engine cranking)
-
Cause of problem Malfunction in ignition power transistor
-
Wave pattern characteristics Power voltage results when the ignition power transistor is ON.
