Timing Component Alignment Marks: Locations

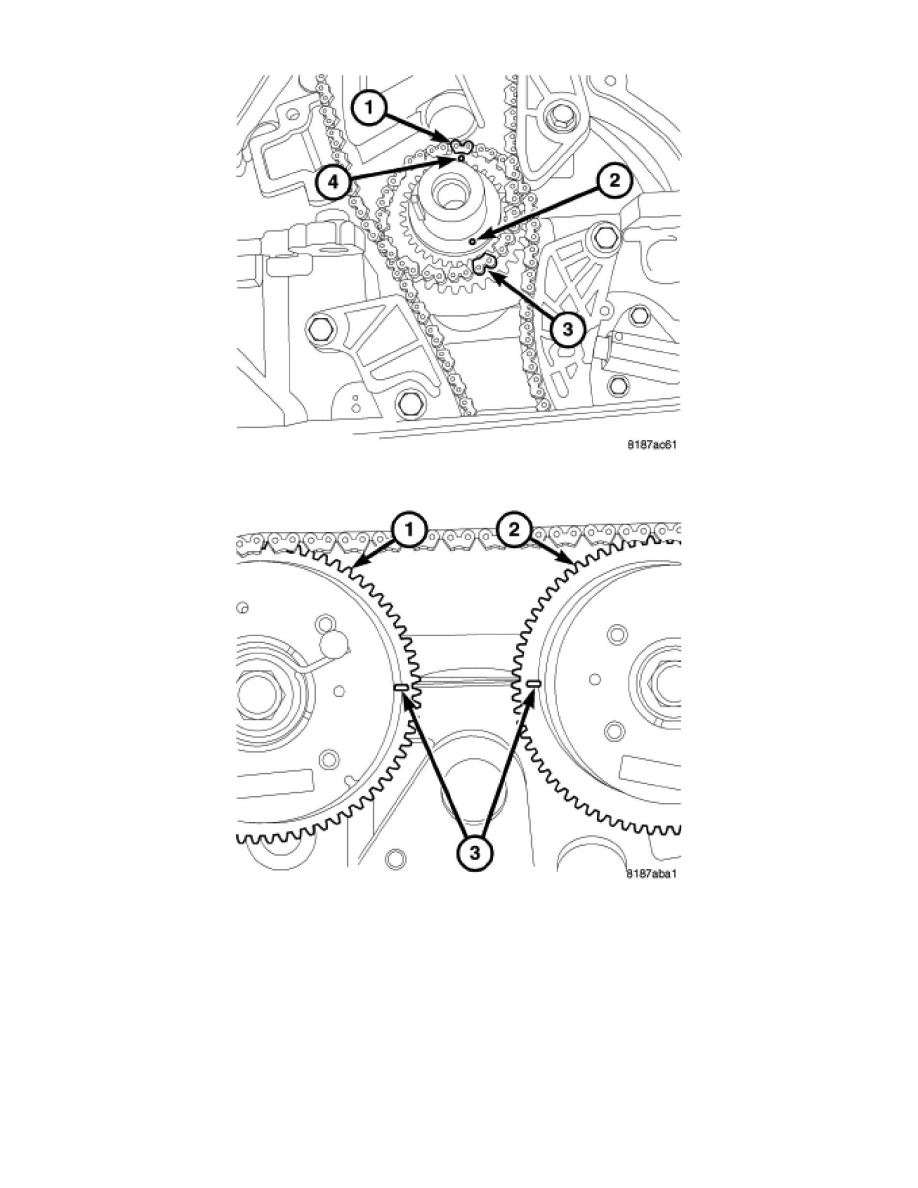

1. Verify that the crankshaft sprocket keyway is at the 9 o'clock position.
2. Align camshaft timing marks (3) so they are parallel to the cylinder head and aligned each other as shown.
