Sebring Sedan L4-2.4L (2007)

Page 1
background image

Wheel Fastener: Specifications

Aluminum Wheel

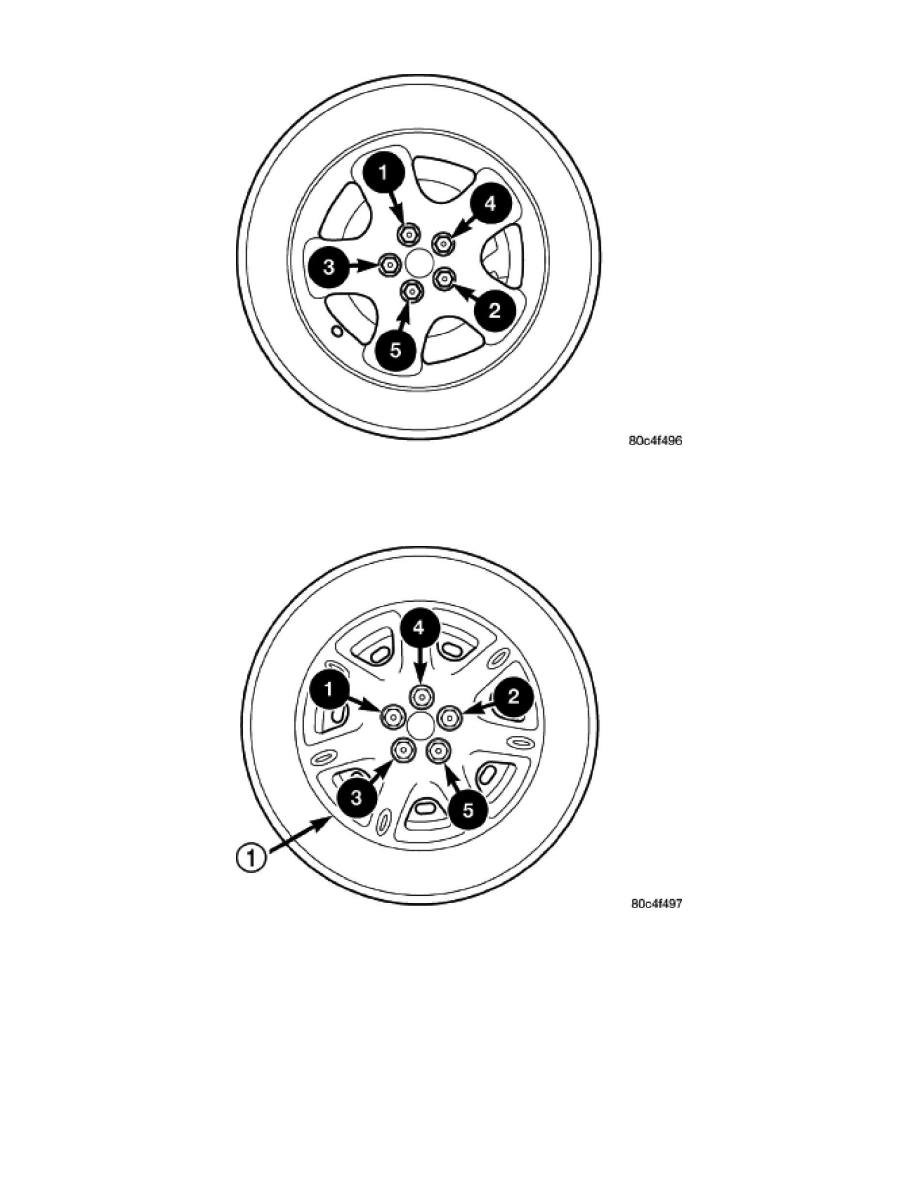

Progressively tighten all wheel mounting nuts in the proper sequence shown.
Tighten nuts to a final torque of  ...........................................................................................................................................................  135 Nm (100 ft. lbs.)

Steel Wheel

Progressively tighten all wheel mounting (lug) nuts in the proper sequence shown.
Tighten the nuts to a final torque of  .....................................................................................................................................................  135 Nm (100 ft. lbs.)
