Flywheel: Specifications

DIESEL

Flywheel

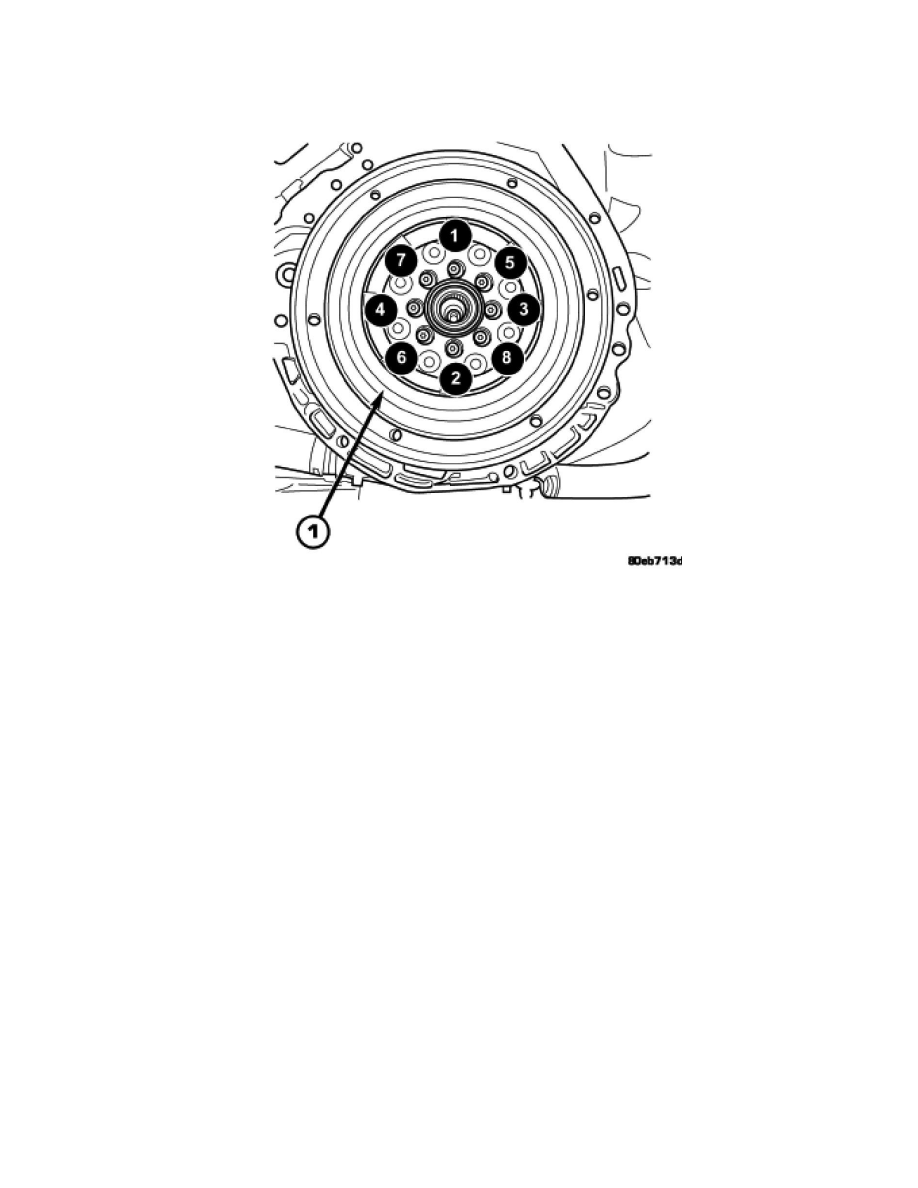

Install eight (8) flywheel-to-crankshaft bolts.
Tighten to  ...............................................................................................................................................................................................  45 Nm (33 ft. lbs.)
Plus an additional 1/4 turn (90 degrees).

GAS

Flywheel
