Relay Box: Diagrams
- Make
- Chrysler
- Model
- Sebring Sedan
- Engine
- V6-3.5L
- Year
- 2009
- Section
- Relay Box › Diagrams
Power and Ground DistributionDiagrams · page 1 of 5
Relay Box: Diagrams

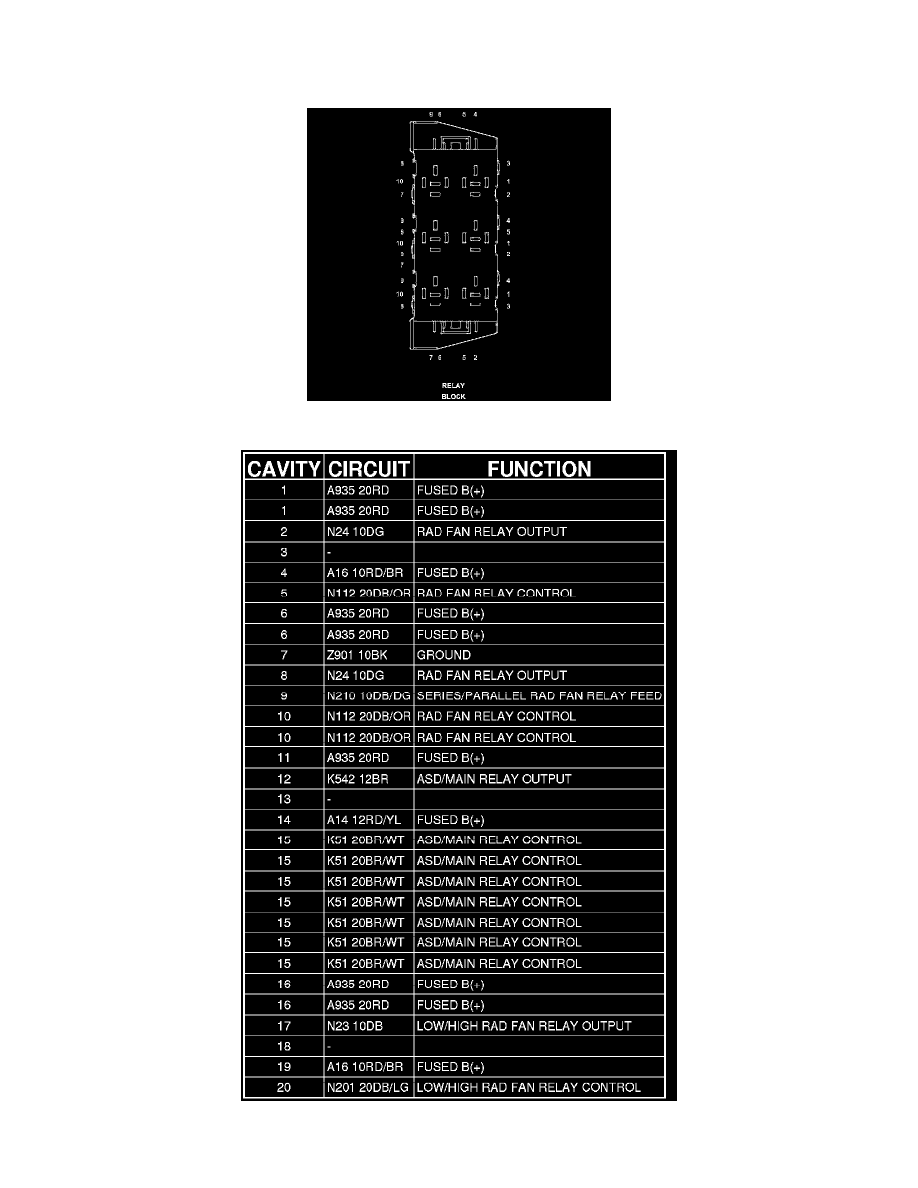

Connector - (HDLP_DASH) 20 WAY
RELAY BLOCK - (HDLP_DASH) 20 WAY
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
