Drive Belt: Diagrams
- Make
- Dodge
- Model
- 2500 4x4 Pickup
- Engine
- V8-318 5.2L Magnum
- Year
- 1995
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 4
Drive Belt: Diagrams

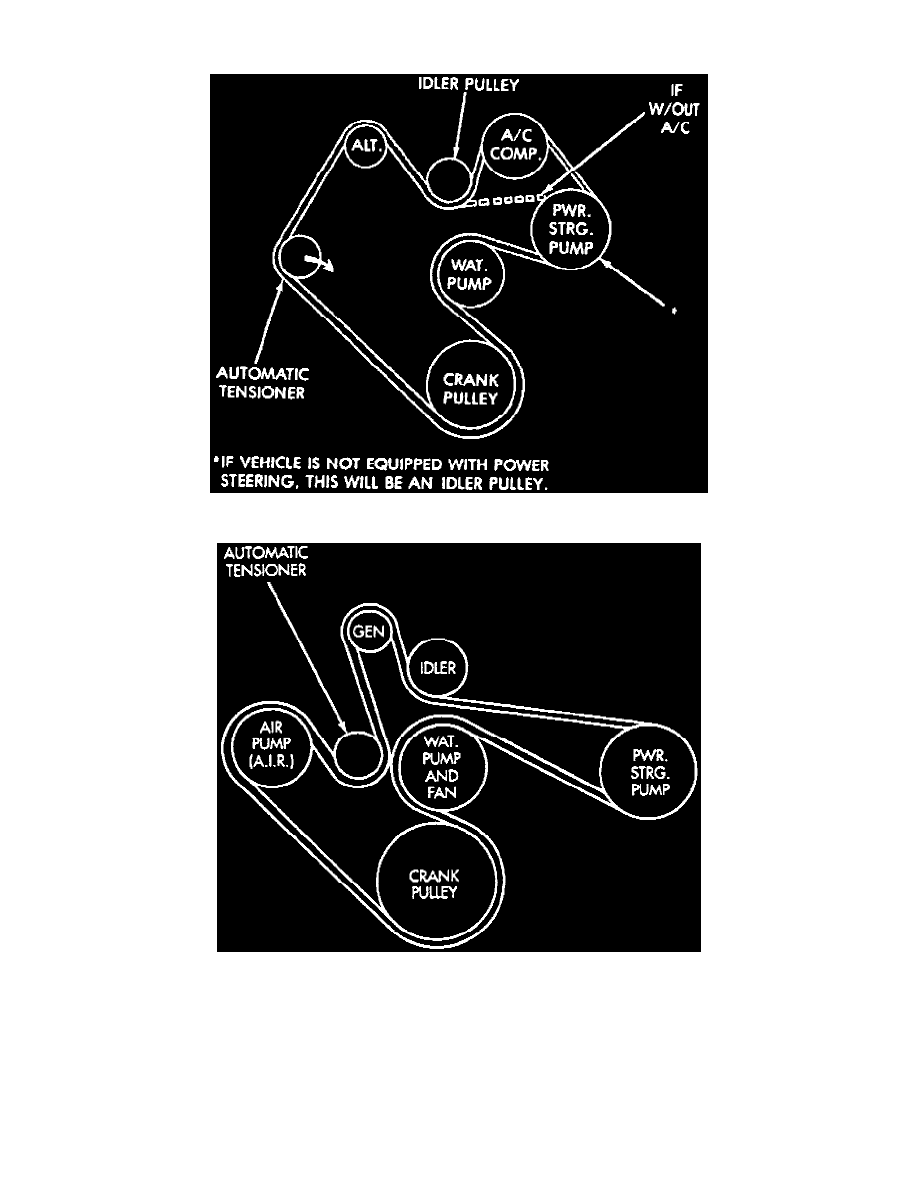

Fig. 40 Serpentine Drive Belt Routing
Fig. 40 Serpentine Drive Belt Routing
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
