A/C Heater Control: Adjustments

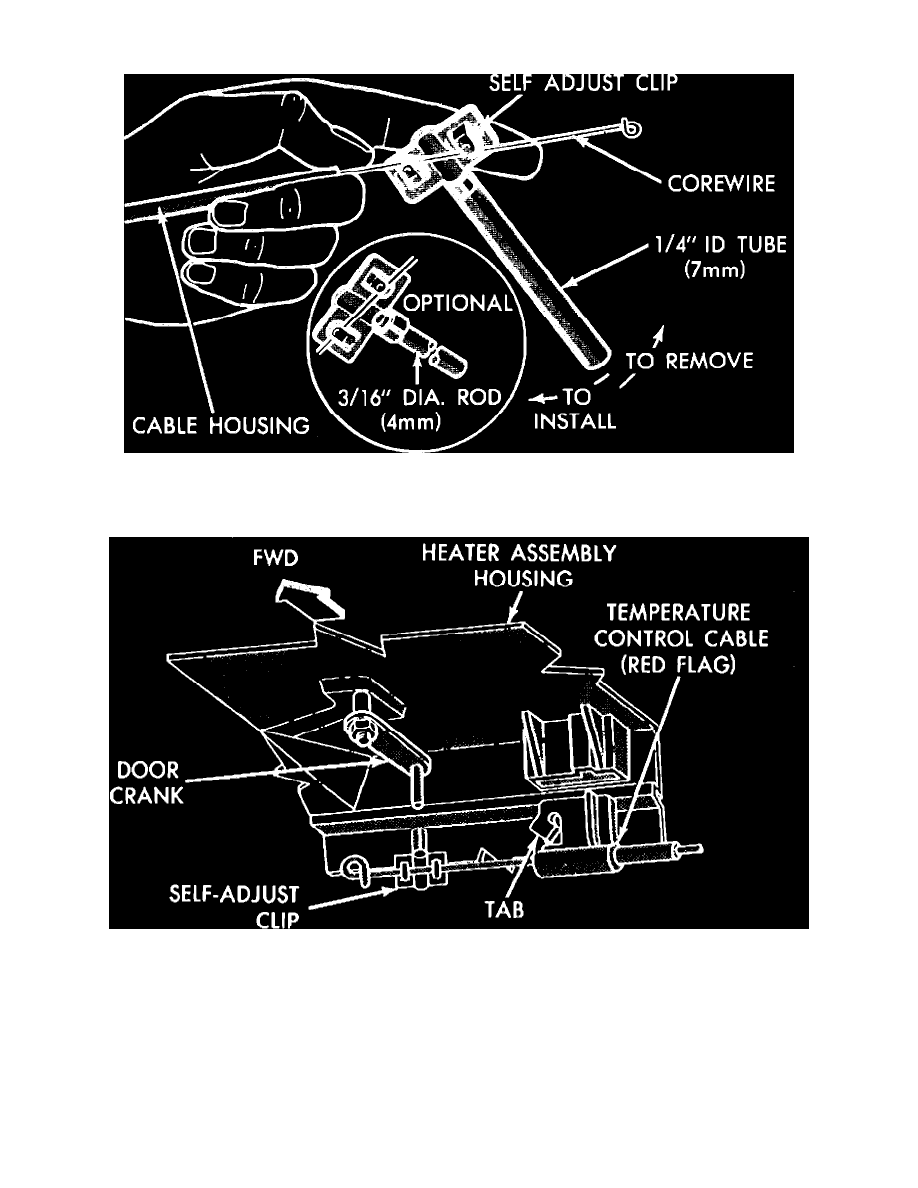

Fig. 1 Removing or installing self-adjust clip

    Position self-adjusting clip on cable core wire 2 inches from loop at heater evaporator cable end. Pry clip into locked position using 1/4 inch tube.

Fig. 2 Control cable connection at door crank

Align door crank pin with clip and seat cable flag.
