Alignment: Service and Repair
Front Alignment

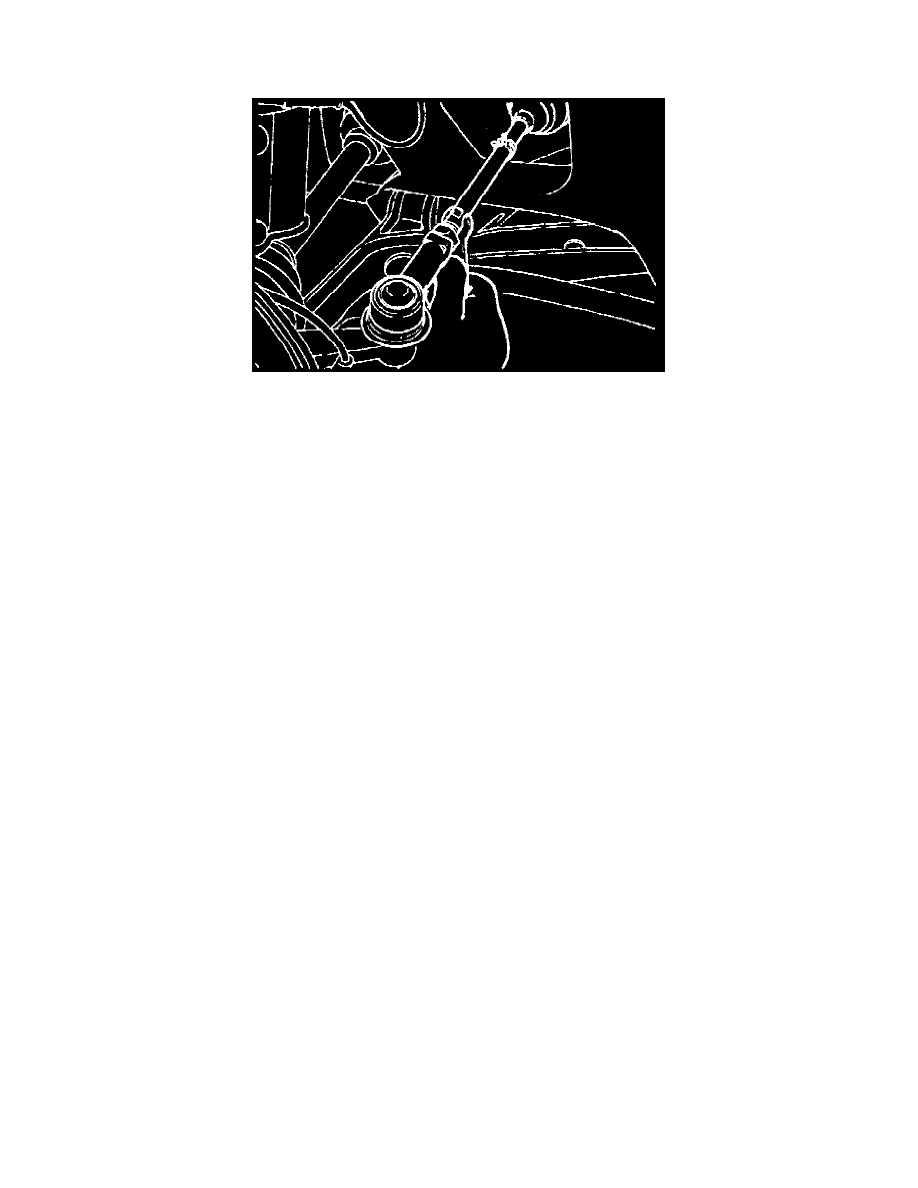

Fig. 1 Front Toe Adjustment

If toe measurement is not within specifications, adjust as follows:

1. Undo clips and turn left and right tie rod turnbuckles by the same amount in opposite directions,
2. Toe will move out as left turnbuckle is turned toward front of vehicle and right turnbuckle is turned toward rear of vehicle.
