Avenger L4-2.4L (2009)

  • Maintenance
  • Fuses and Circuit Breakers
  • Fuse
  • Component Information
  • Locations

Page 1
background image

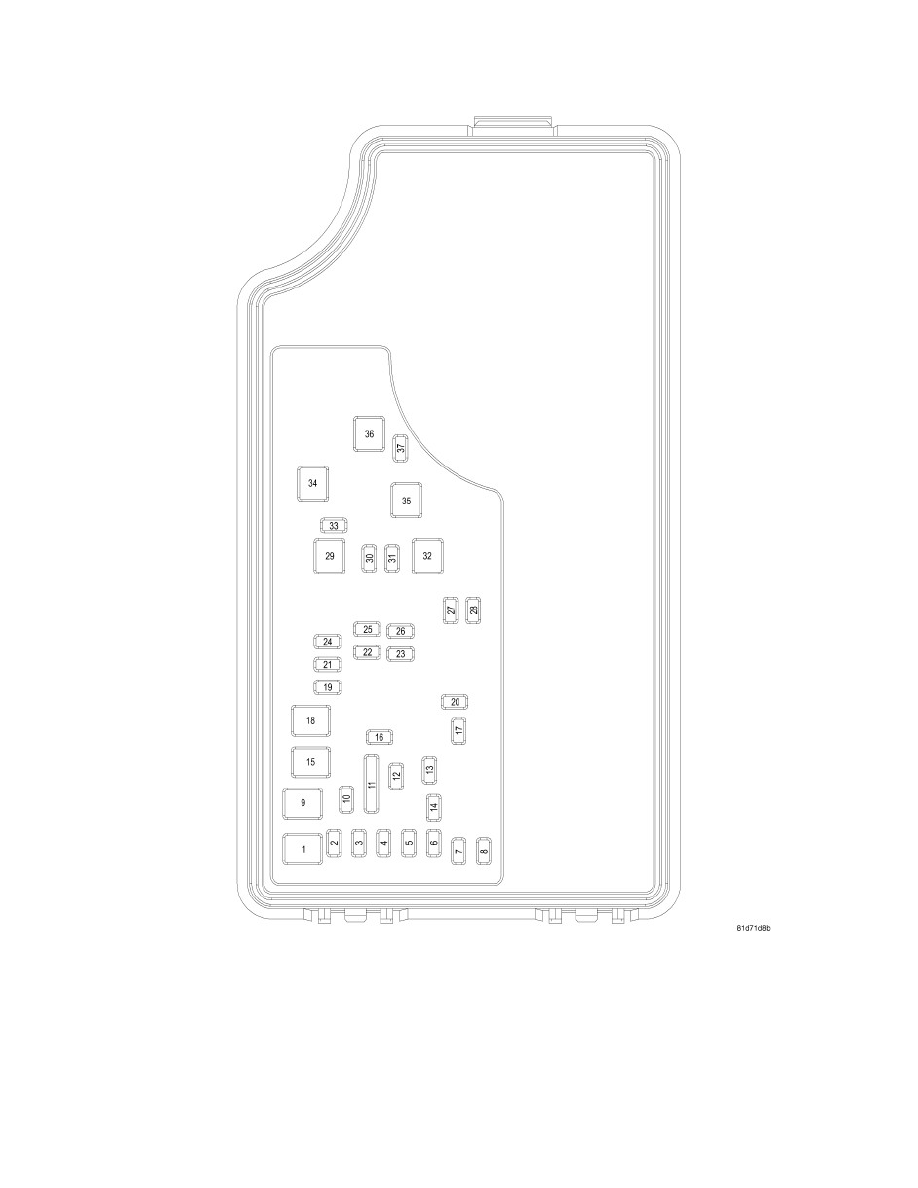

Fuse: Locations

SPECIFICATIONS

A Totally Integrated Power Module is located in the engine compartment near the air cleaner assembly. This center contains cartridge fuses and mini
fuses.
