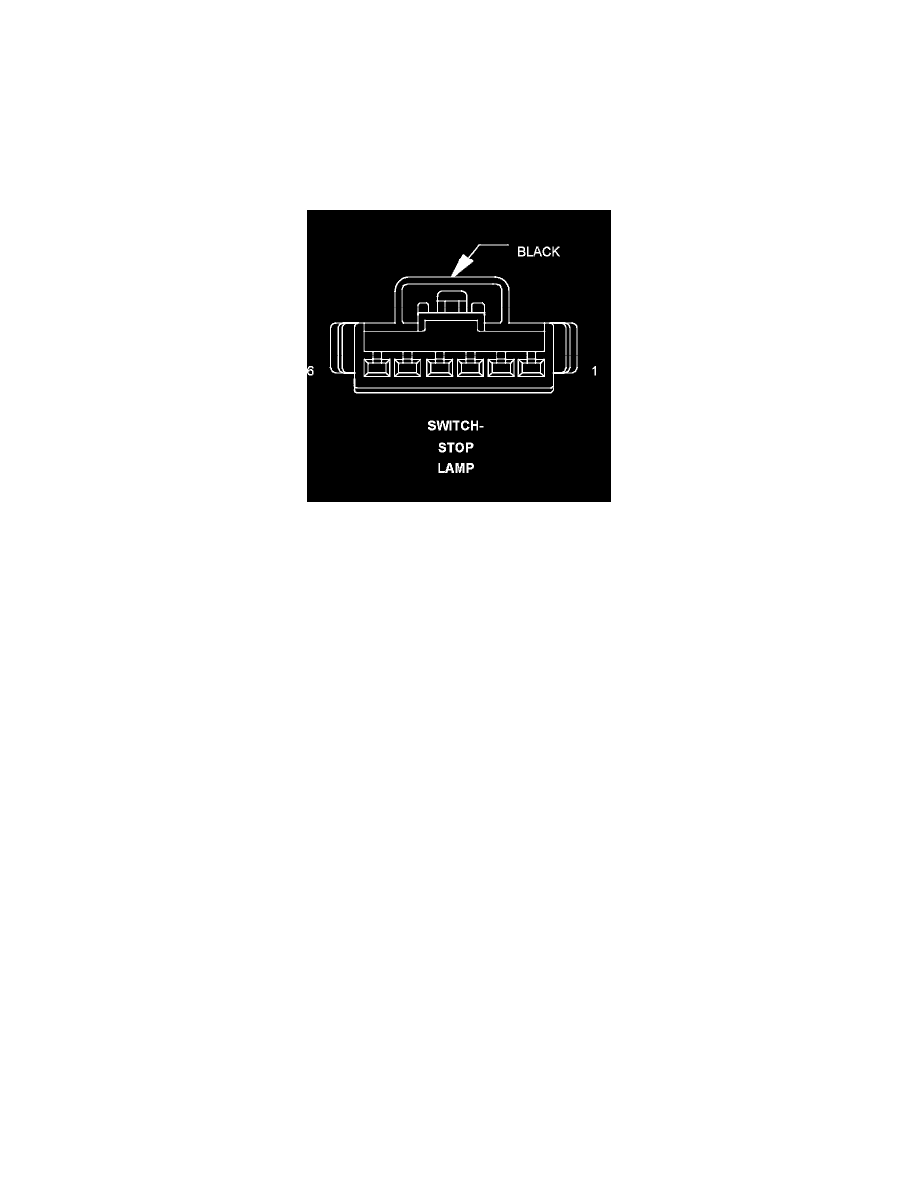

Brake Light Switch: Locations

Component ID:

472

Component :

SWITCH-STOPLAMP

Connector:

Name :

SWITCH-STOPLAMP

Color :

BLACK

# of pins :

6

Pin

Circuit

Description

  1

A924 22RD

FUSED B(+)

  2

L53 20DG/WT

STOP LAMP SWITCH OUTPUT

  3

F202 18PK/WT

IGNITION SWITCH OUTPUT (RUN-START)

  4

B16 20LB/DG

BRAKE SIGNAL 2

  5

Z908 20BK

GROUND

  6

B15 20DG/WT

BRAKE SIGNAL 1

Component Location - 58
