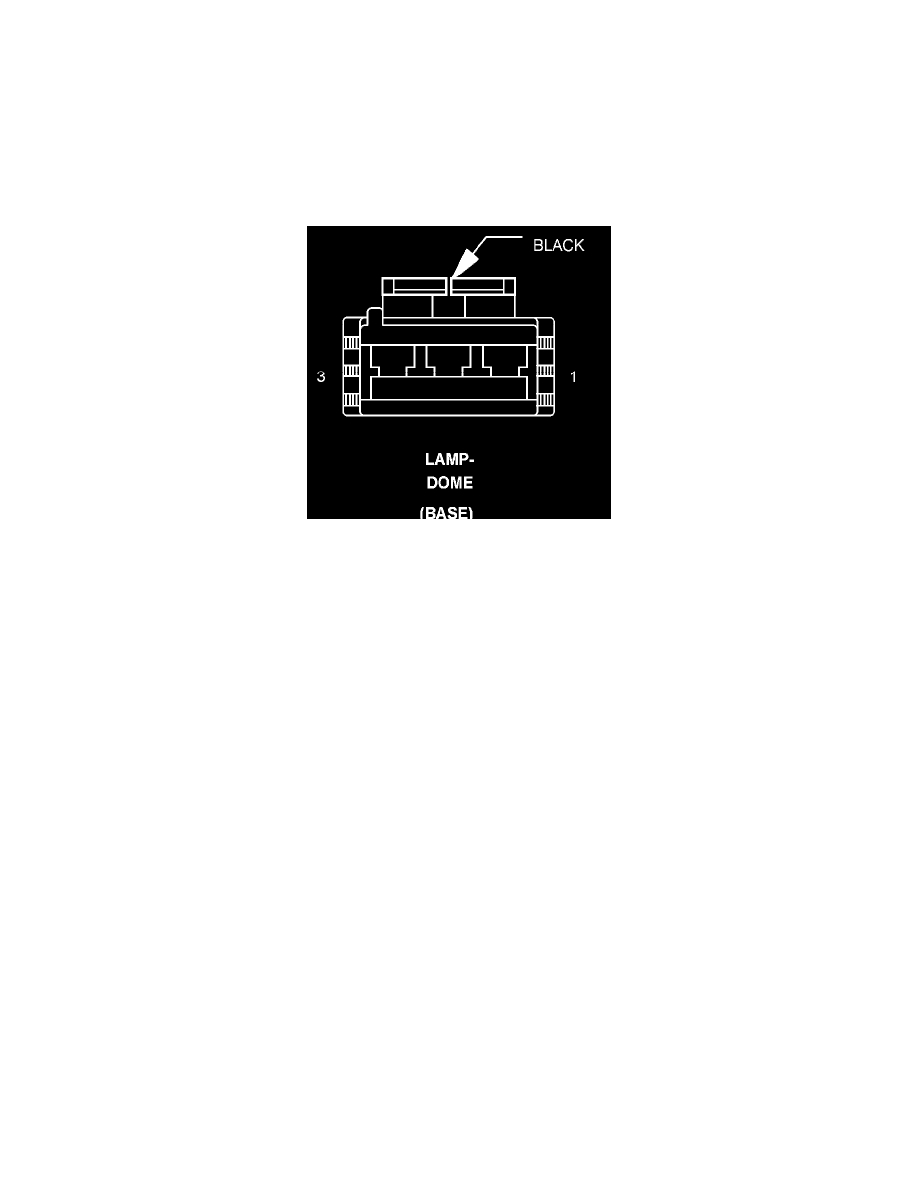

Dome Lamp: Locations

Component ID:

159

Component :

LAMP-DOME

Connector:

Name :

LAMP-DOME

Color :

BLACK

# of pins :

3

Qualifier :

(BASE)

Pin

Circuit

Description

  1

-

-

  2

M24 20YL/WT

COURTESY LAMPS DRIVER

  3

Z907 20BK

GROUND

Component Location - 53
