Wiper Motor: Locations

Make

Dodge

Model

Avenger

Engine

V6-3.5L

Year

2008

Section

Wiper Motor › Locations

Wiper and Washer SystemsLocations · page 1 of 5

Wiper Motor: Locations

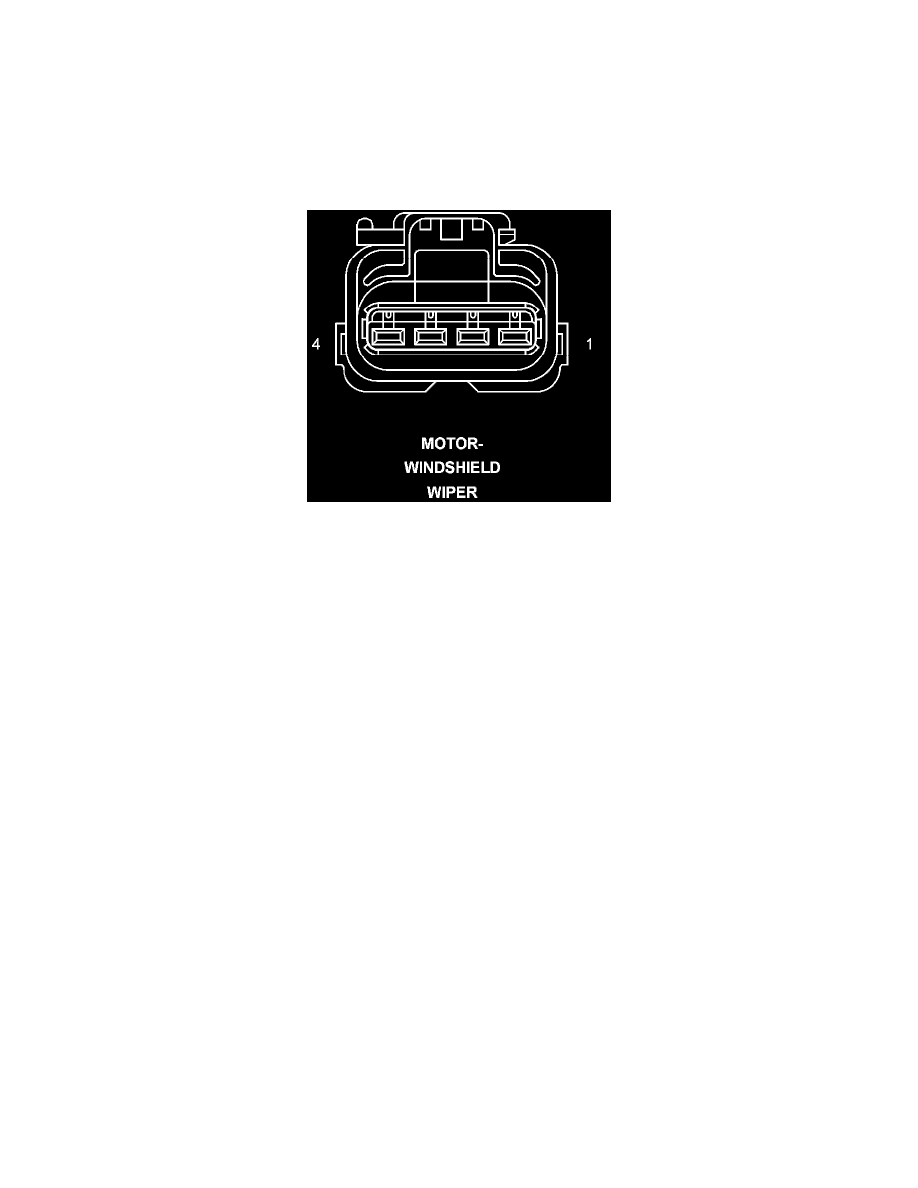

Component ID:

241

Component :

MOTOR-WINDSHIELD WIPER

Connector:

Name :

MOTOR-WINDSHIELD WIPER

Color :
# of pins :

4

Pin

Circuit

Description

  1

W7 20BR/GY

FRONT WIPER PARK SWITCH SENSE

  2

Z901 12BK

GROUND

  3

W3 16BR/WT

FRONT WIPER LOW SPEED CONTROL OUTPUT

  4

W4 12BR/OR

FRONT WIPER HIGH SPEED CONTROL OUTPUT

Component Location - 18
