Intake Manifold: Specifications
- Make
- Dodge
- Model
- Caliber
- Engine
- L4-1.8L
- Year
- 2009
- Section
- Engine › Intake Manifold › Specifications
Engine, Cooling and ExhaustSpecifications · page 1 of 2
Intake Manifold: Specifications

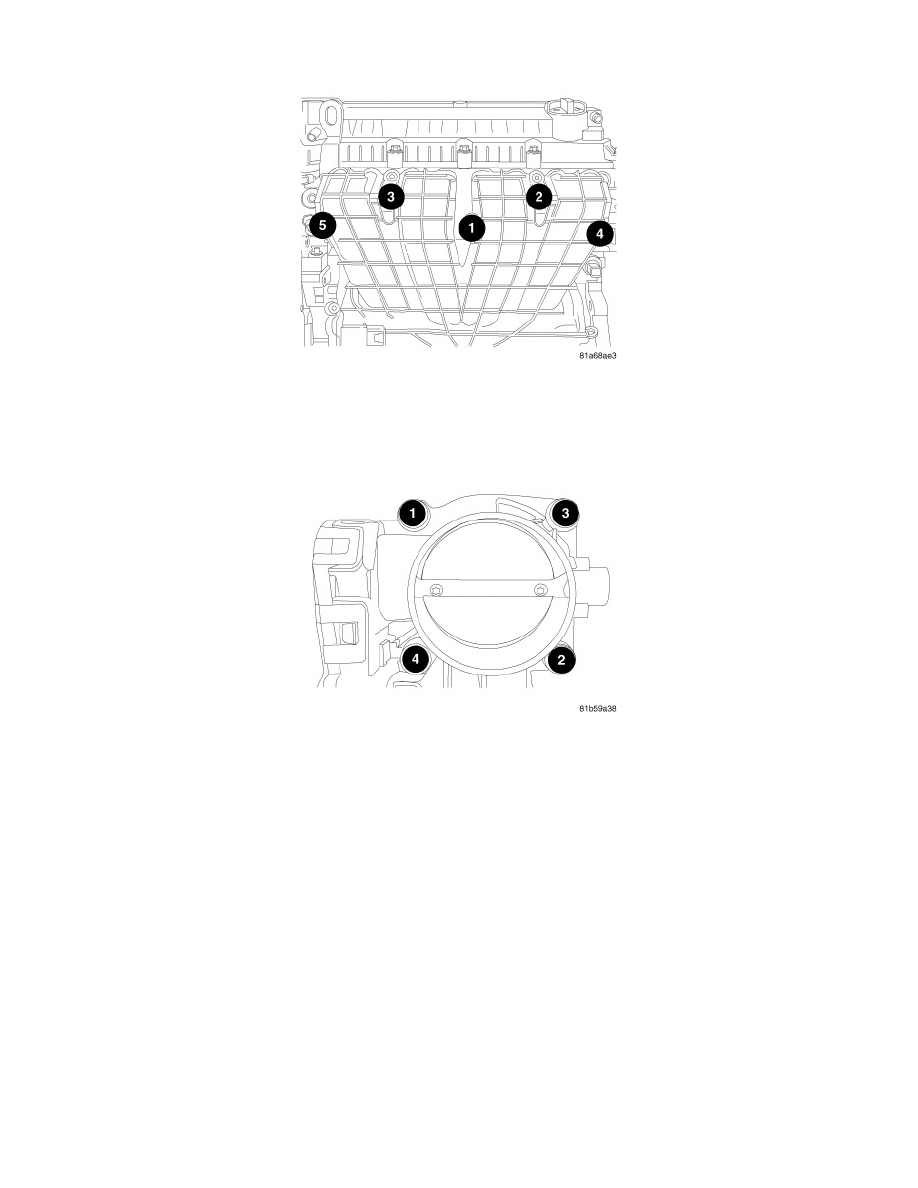

INTAKE MANIFOLD
Intake Manifold-Bolts..................................................................................................................................................................................24 Nm (18 ft. lbs.)
THROTTLE BODY
Tighten the bolts in a mandatory torque criss - cross pattern sequence to................................................................................................7.5 Nm (65 in. lbs.).
