Caravan V6-181 3.0L SOHC (1989)
Drive Belt: Specifications

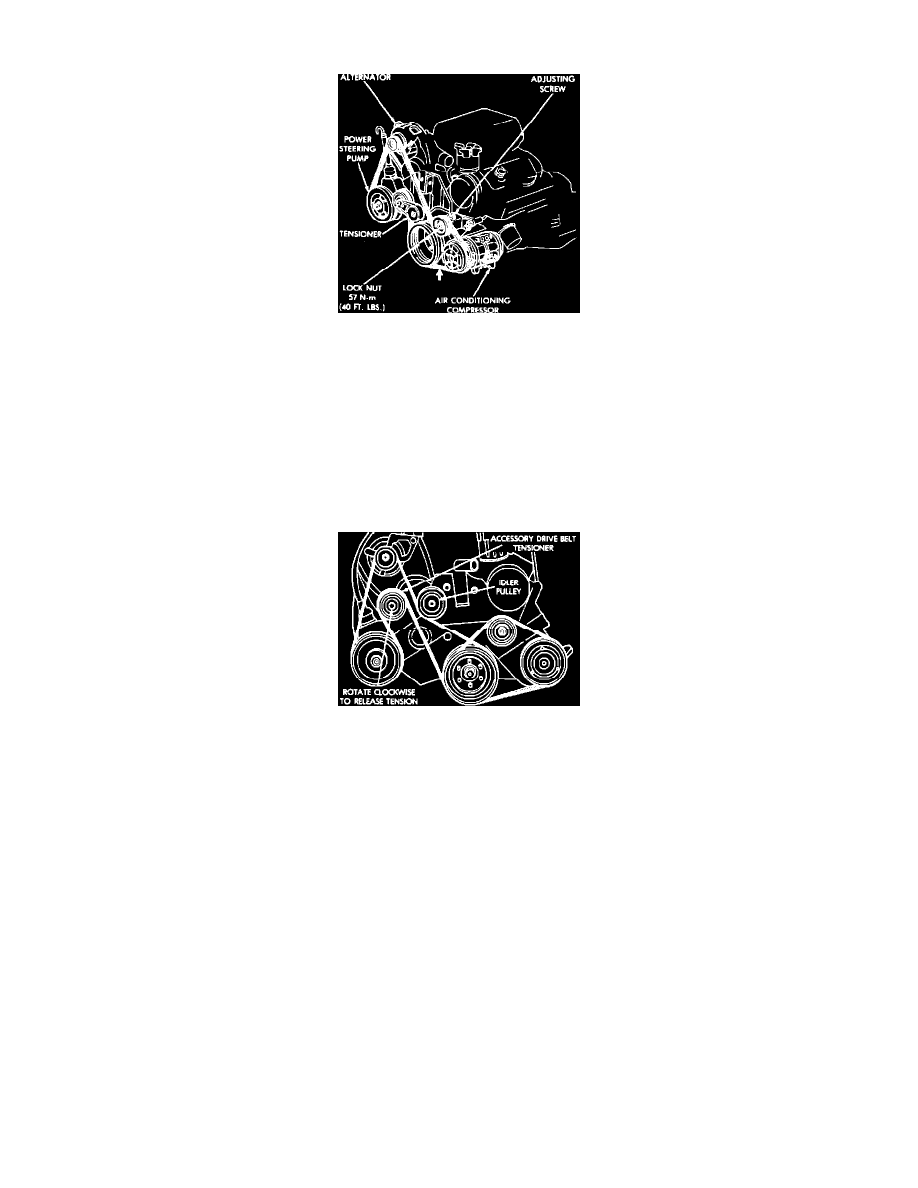

Fig. 23 Belt deflection check points
AIR CONDITIONING BELT
Belt deflection under a ten pound push or pull should be between 1/4 to 5/16 at locations shown in Fig. 23. Measure deflection while applying tension to
accessory, then tighten mounting mounts to specification. Deflection on a new belt should be between 1/4 to 1/2; a belt is considered used after 15
minutes of engine operation, tension on a used belt should be 1/4 and 5/16 under a tension pound load.
ACCESSORY BELT
Correct belt tension is 5/16 deflection between pulleys.
Fig. 24 Serpentine drive belt
SERPENTINE DRIVE BELT ROUTINGS
Refer to Fig. 24, for serpentine belt routing.
