Caravan V6-201 3.3L (1995)
Alignment: Service and Repair
Front Alignment
Adjustment
CASTER
The caster angle on these vehicles cannot be adjusted.

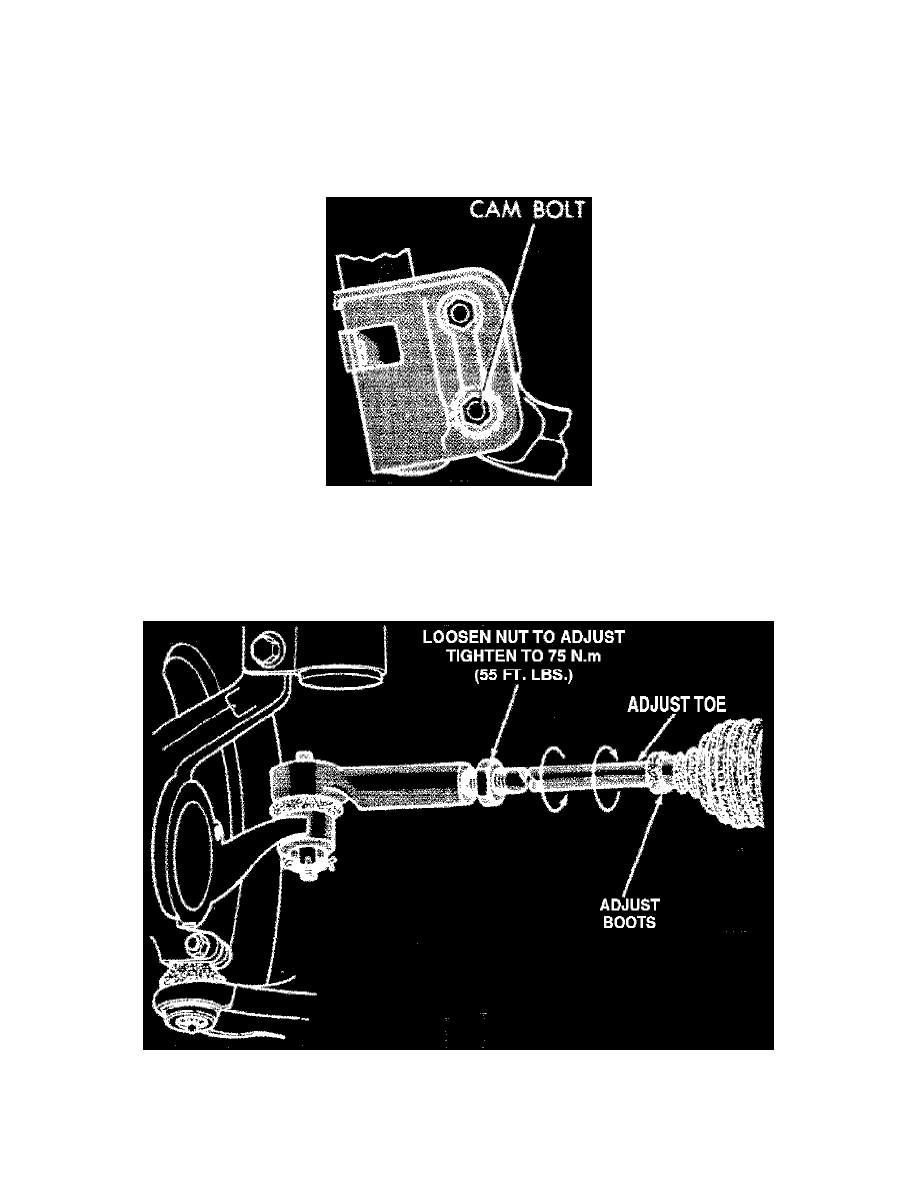

Fig. 1 Camber Adjustment
CAMBER
To adjust camber, loosen cam and through bolts. Rotate upper cam bolt to move top of wheel in or out to achieve specified camber angle. Torque cam
bolt nut to 75 ft. lbs. plus an additional 1/4 turn.
Fig. 2 Toe-in Adjustment
TOE-IN
