Power Seat Switch: Diagrams

Connector - (FRONT SEAT) 11 WAY

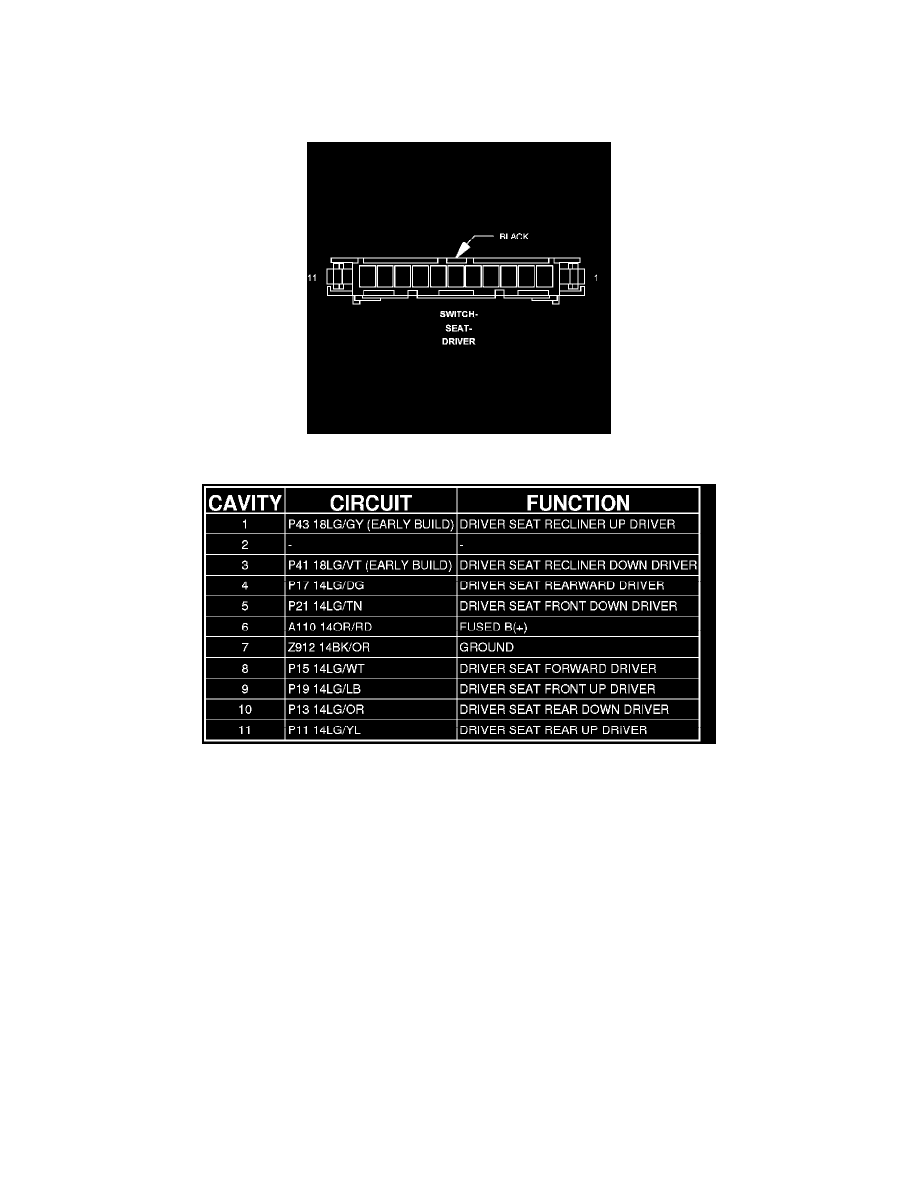

SWITCH-SEAT-DRIVER - (FRONT SEAT) 11 WAY
