Challenger V6-3.5L (2009)
12. Install the oil cooler and attaching fastener (if equipped) and tighten to 61 Nm (45 ft. lbs.) See: Oil Cooler/Service and Repair/Engine Oil Cooler -
Installation
13. Install the engine oil filter (3). Tighten filter to 12 Nm (106 in. lbs.).
14. Install the belly pan See: Body and Frame/Exterior Moulding / Trim/Underbody Cover/Service and Repair/Belly Pan - Installation
15. Lower the vehicle.

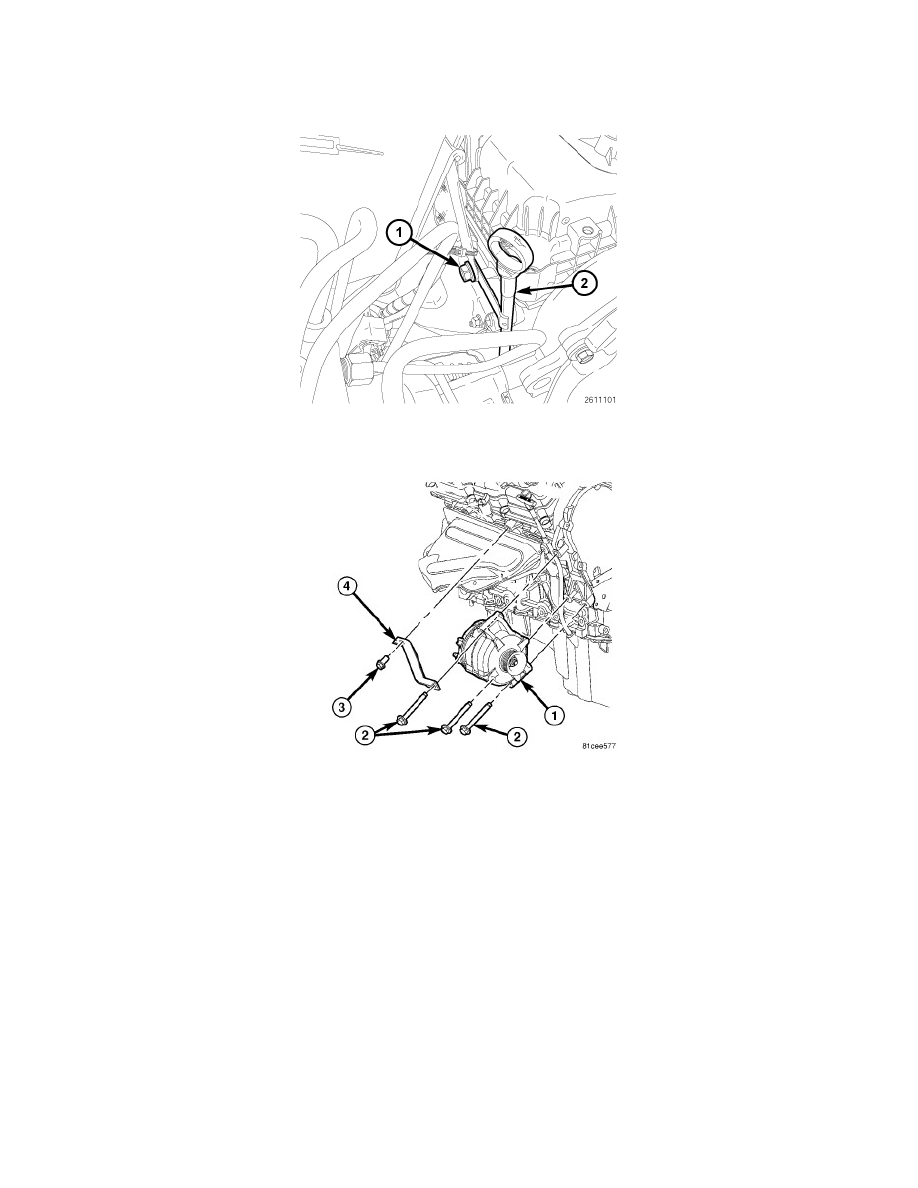

16. Install the engine oil level indicator tube (2) and tighten the retaining bolt (1) to 12 Nm (105 in. lbs.).
17. Position the generator bracket (4) and install the bracket bolt (3). Tighten the generator mounting bolt (2) to 65 Nm (48 ft. lbs.) and tighten the
generator bracket bolt (3) to 54 Nm (40 ft. lbs.).
18. Fill the engine crankcase with the proper oil to the correct level .
19. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
