Challenger V6-3.5L (2009)
Intake Manifold: Specifications
INTAKE MANIFOLD
Intake Manifold - Upper-Bolts..................................................................................................................................................................12 Nm (105 in. lbs.)
Intake Manifold - Lower-Bolts.................................................................................................................................................................28 Nm (250 in. lbs.)
THROTTLE BODY

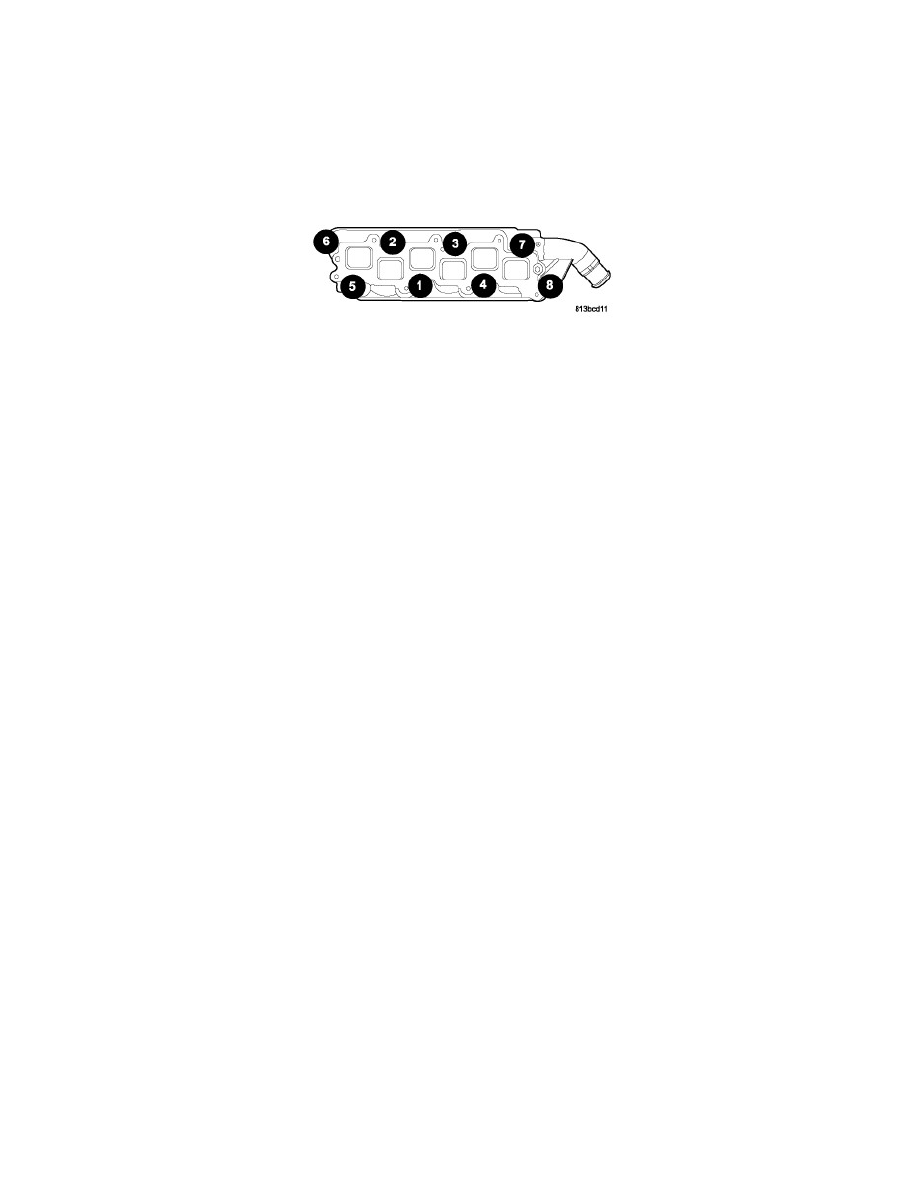

Tighten the bolts in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.).
Install the throttle body support bracket to the bottom of the throttle body. Tighten the bolts to 27 Nm (20 ft. lbs.).
