Firing Order: Specifications

Make

Dodge

Model

Challenger

Engine

V6-3.5L

Year

2009

Section

Ignition System › Firing Order › Specifications

Powertrain ManagementSpecifications

Firing Order: Specifications

FIRING ORDER

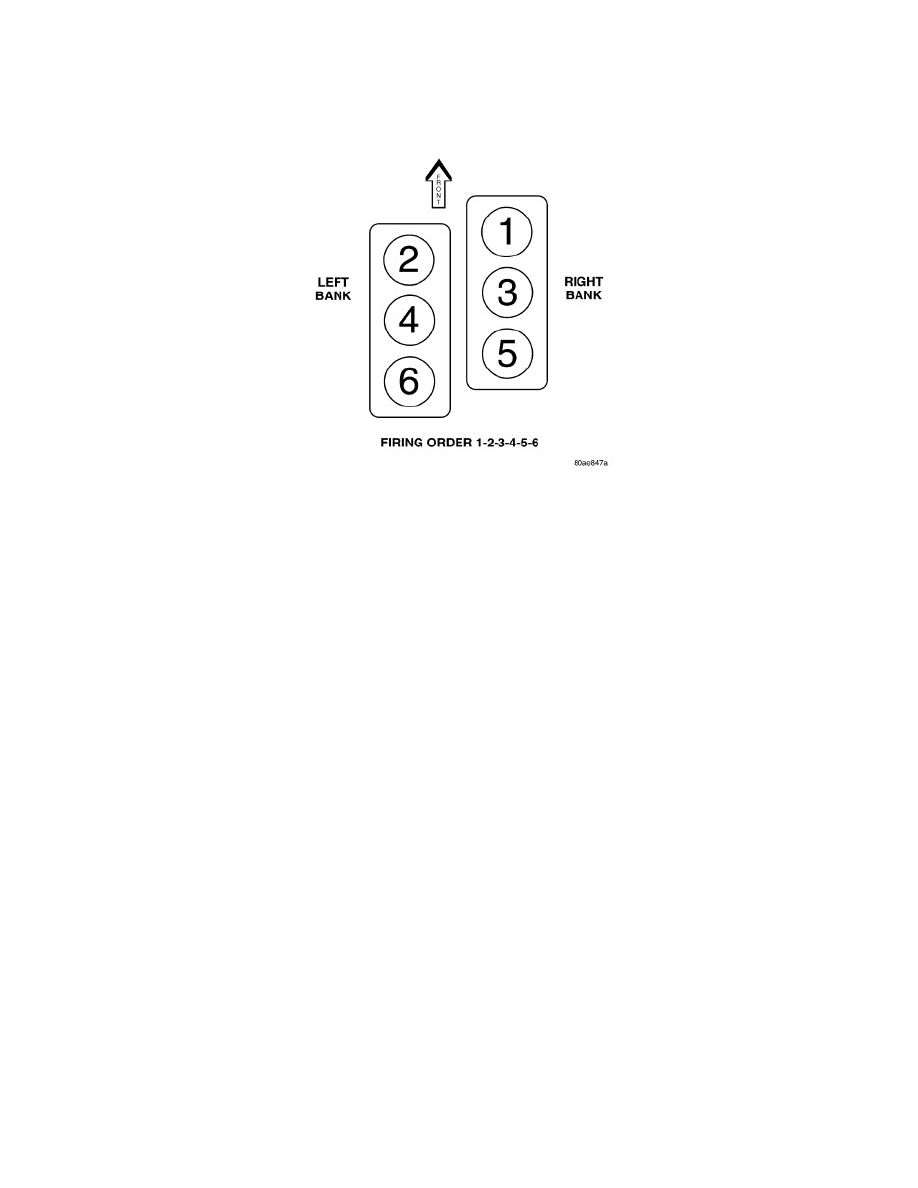

3.5L

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. The firing order is 1-2-3-4-5-6.

6.1L, 5.7L

The cylinders are numbered from front to rear;
1, 3, 5, 7 on the left bank.
2, 4, 6, 8 on the right bank.
The firing order is 1-8-4-3-6-5-7-2.
