Challenger SRT-8 V8-6.1L (2009)
Vehicle Lifting: Service and Repair
HOISTING

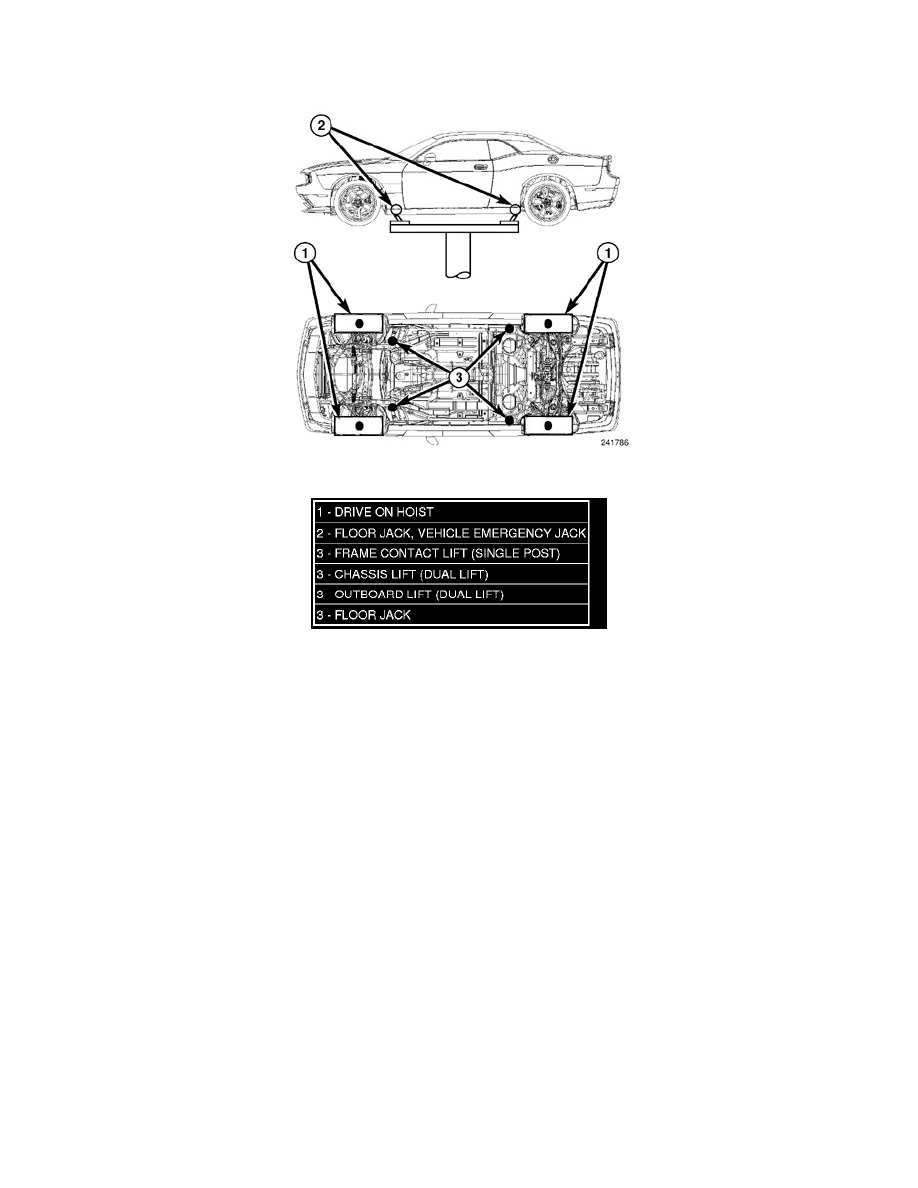

CHALLENGER LIFTING POINTS
Refer to Owner's Manual provided with vehicle for proper emergency jacking procedures.
WARNING: The hoisting and jack lifting points provided are for a complete vehicle. When the engine or rear suspension is removed from a
vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting
device when these conditions exist. Failure to follow these instructions may result in serious or fatal injury.
CAUTION: Do not position hoisting device on any suspension component, including the front or rear suspension crossmembers. Do not hoist
on the front and rear bumpers, the lower radiator crossmember, or the front engine mount.
Do not attempt to raise one entire side of the vehicle by placing a floor jack midway between the front and rear wheels. This
practice may result in permanent damage to the body.
When properly positioned, a floor jack can be used to lift the vehicle and support the raised vehicle with jack stands.
A floor jack or any lifting device must never be used on any part of the underbody other than the described areas.
