Backup Lamp (Lamp-Backup-Left): Locations

Make

Dodge

Model

Charger

Engine

V8-5.7L

Year

2008

Section

Backup Lamp › Locations › Lamp-Backup-Left

Lighting and HornsLamp-Backup-Left · page 1 of 20

Backup Lamp: Locations
Lamp-Backup-Left

Component ID:

173

Component :

LAMP-BACKUP-LEFT

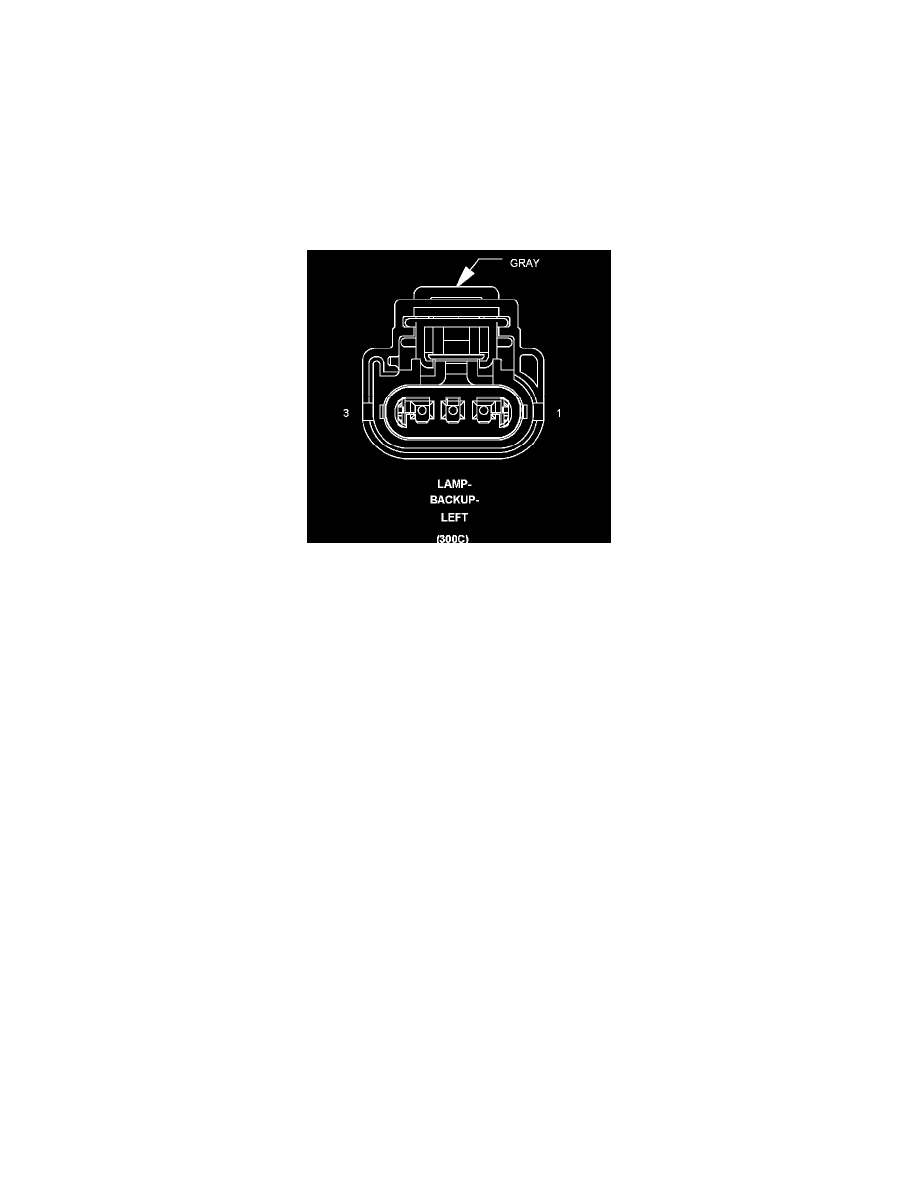

Connector:

Name :

LAMP-BACKUP-LEFT

Color :

GRAY

# of pins :

3

Qualifier :

(300C)

Pin

Circuit

Description

  1

Z914 20BK/GY

GROUND

  2

-

-

  3

L1 20WT/LG

BACKUP LAMP CONTROL OUTPUT

Component Location - 85
