Cargo Lamp: Locations

Make

Dodge

Model

Charger

Engine

V8-5.7L

Year

2008

Section

Cargo Lamp › Locations

Lighting and HornsLocations · page 1 of 10

Cargo Lamp: Locations

Component ID:

175

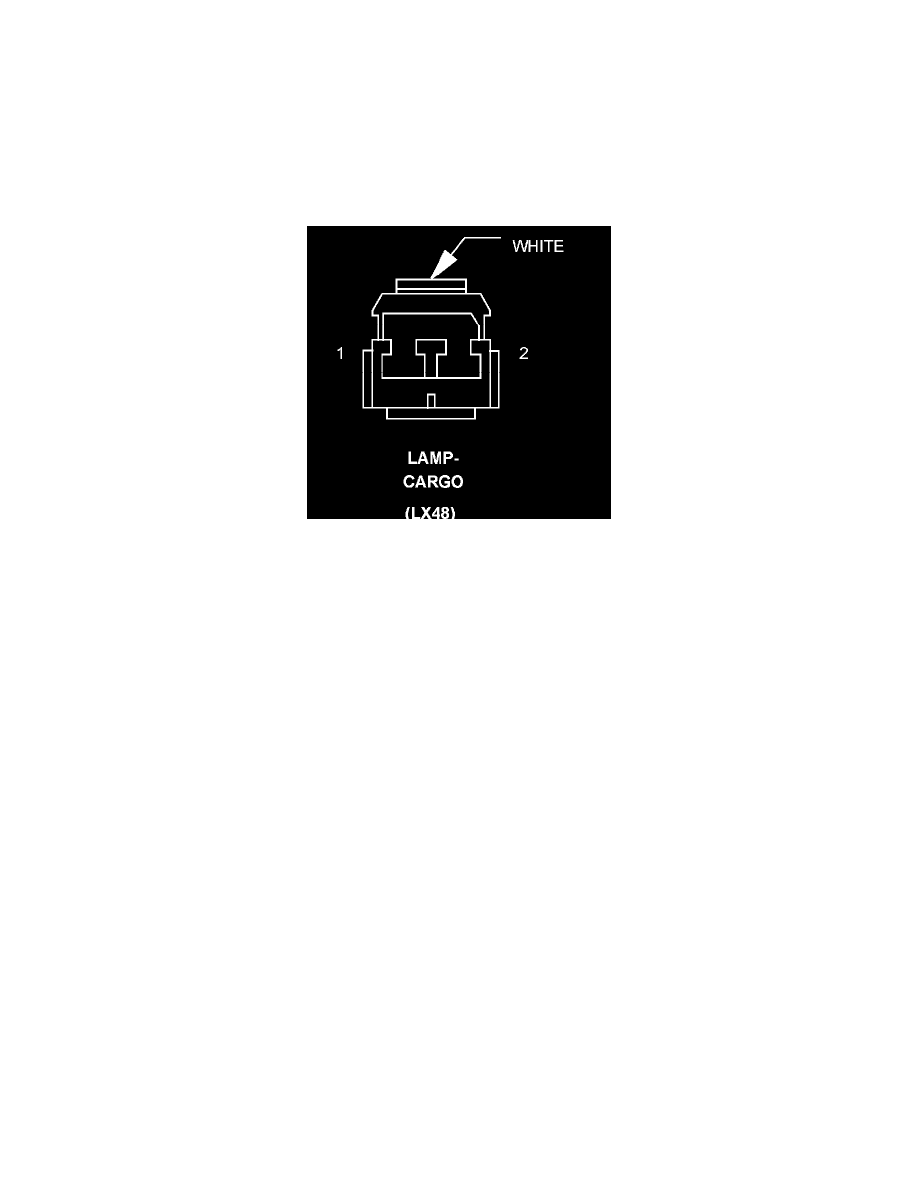

Component :

LAMP-CARGO

Connector:

Name :

LAMP-CARGO

Color :

WHITE

# of pins :

2

Qualifier :

(LX48)

Pin

Circuit

Description

  1

G78 20VT/OR

DECKLID/LIFTGATE AJAR SWITCH SENSE

Pin

Circuit

Description

  1

G78 20BK

DECKLID/LIFTGATE AJAR SWITCH SENSE

  2

A117 20RD/DG

FUSED B(+) (I.O.D.)

Component Location - 66

Pinch or Ctrl + scroll to zoom. Double-tap to reset.

17 Electrical
