Windshield Washer Pump: Locations

Component ID:

297

Component :

PUMP-WASHER-WINDSHIELD

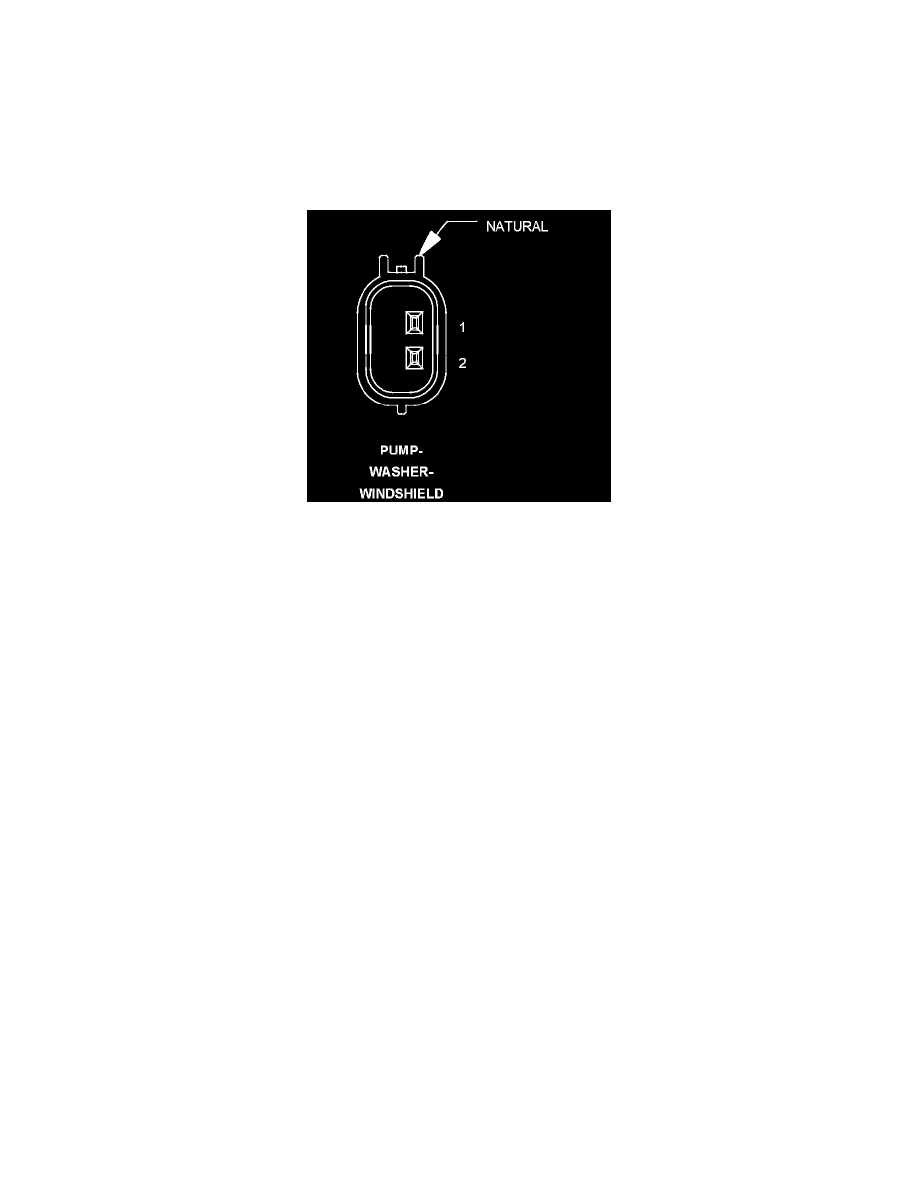

Connector:

Name :

PUMP-WASHER-WINDSHIELD

Color :

NATURAL

# of pins :

2

Pin

Circuit

Description

  1

W10 20BR

FRONT WASHER PUMP MOTOR CONTROL

  2

W20 20BR/YL

REAR WASHER PUMP MOTOR CONTROL

  2

Z904 20BK/BR

GROUND

Component Location - 2
