Charger V8-5.7L VIN H (2007)
Timing Component Alignment Marks: Locations
INSTALLATION

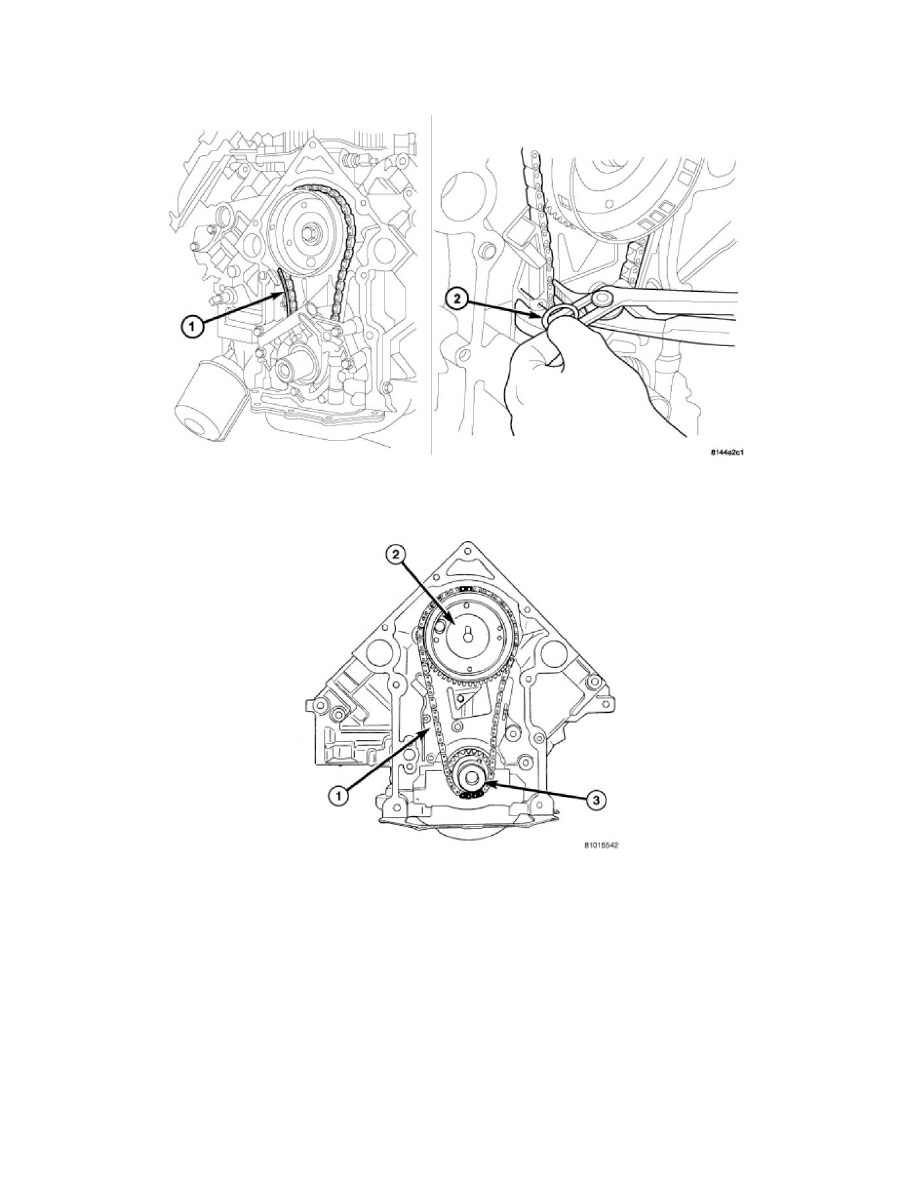

1. If tensioner (1) assembly is being replaced, install tensioner and mounting bolts. Torque bolts to 28 Nm (250 in. lbs.).
2. Retract tensioner (2) if required.
CAUTION: The timing chain must be installed with the single plated link aligned with the dot and or paint marking on the camshaft
sprocket. The crankshaft sprocket is aligned with the dot and or paint marking on the sprocket between two plated timing chain links.
CAUTION: The camshaft pin and the slot in the cam sprocket must be clocked at 12:00. The crankshaft keyway must be clocked at 2:00.
The crankshaft sprocket must be installed so that the dots and or paint marking is at 6:00.
3. Place both camshaft sprocket and crankshaft sprocket on the bench with timing marks on exact imaginary center line through both camshaft and
crankshaft bores.
