Dodge Charger SRT-8 V8-6.1L (2009)17 · Lighting and Horns
17 · Electrical

Cargo Lamp: Diagrams

Make
Dodge
Model
Charger SRT-8
Engine
V8-6.1L
Year
2009
Section
Cargo Lamp › Diagrams
Lighting and HornsDiagrams
background image

Cargo Lamp: Diagrams

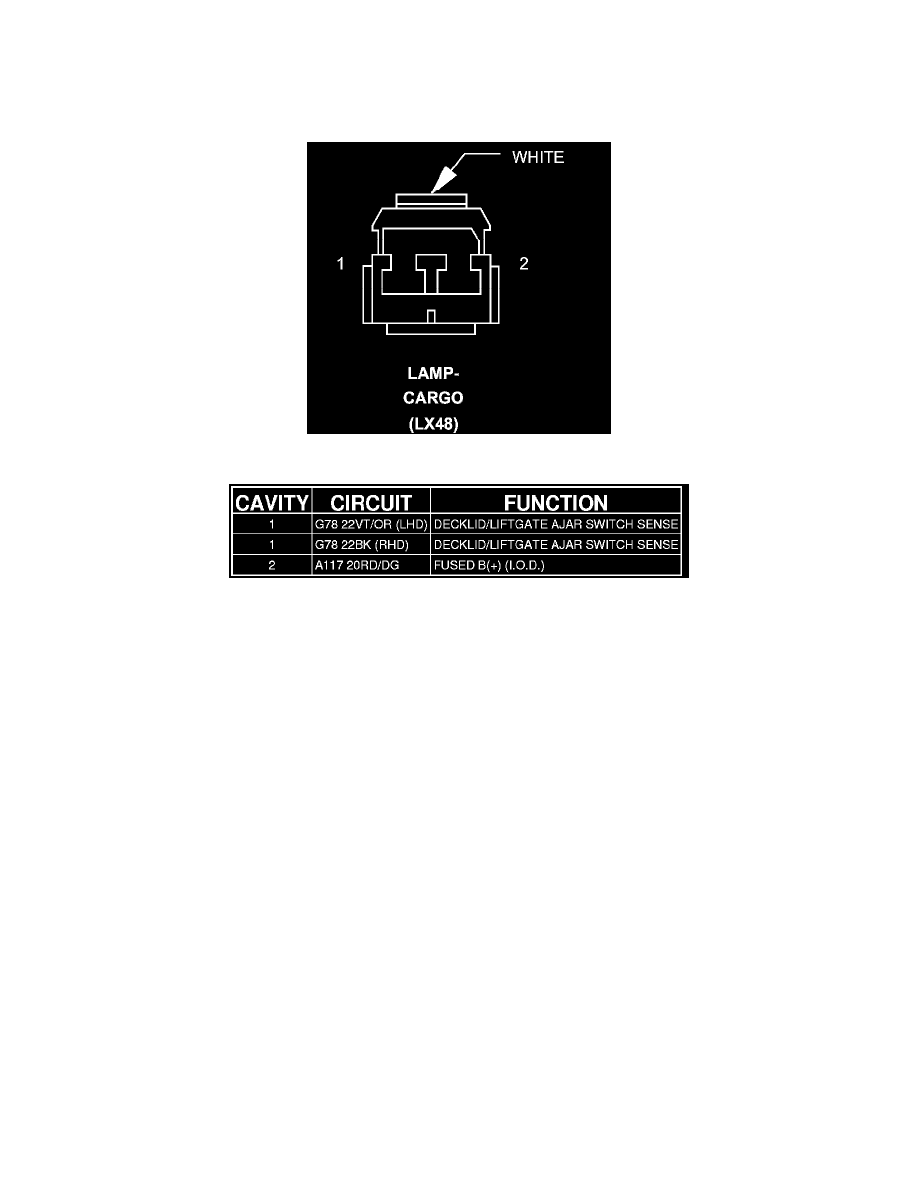

Connector (LX48) - (BODY) 2 WAY



 LAMP-CARGO (LX48) - (BODY) 2 WAY
